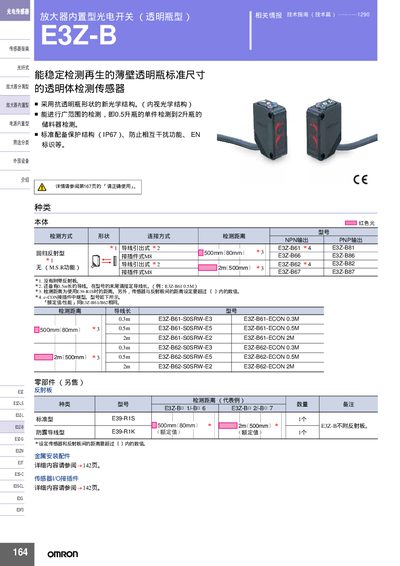

This manual describes the Omron E3Z-B built‑in photoelectric switch amplifier, including its operation, connection methods, and protective features. It covers the device’s rated performance, light source, and detection distance options.
The document also lists mechanical dimensions, environmental limits, and safety precautions required for proper installation and reliable use in industrial applications. This manual is written in Japanese.
| Supply voltage | DC12‑24V |
|---|---|
| Maximum supply voltage | DC26.4V |
| Power consumption | <30 mA |
| Output current (load) | 10‑100 mA |
| Relative humidity (operating) | 35‑85 % RH |
It operates from a DC supply of 12 V to 24 V.
The load current can be set between 10 mA and 100 mA.
