ASRock P31-Deluxe 2.0 motherboard is based on the latest P31/G31 chipset and supports Intel Core 2 Extreme/Quad/Duo/Pentium Dual Core processors, DDR2 memory, ASRock P31-Deluxe 2.0 supports free overclocking technology, supports Intel Hyper-Threading technology, ASRock P31-Deluxe 2.0 supports PCI-Express x16 and PCI-Express x1 slots, and has 4 Serial ATAII 3.0 Gb/s ports. ASRock P31-Deluxe 2.0 supports 5.1 channel high-fidelity audio, and ASRock P31-Deluxe 2.0 supports Windows Vista Premium 2007 logo certification.

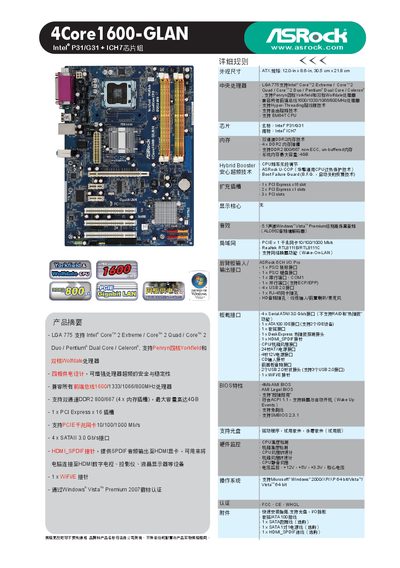

The 4Core1600-GLAN is an ATX motherboard featuring an LGA775 socket that supports a wide range of Intel processors, dual‑channel DDR2 memory up to 4 GB, and multiple expansion options including PCI Express and SATA interfaces. It also offers integrated audio, networking, and HDMI SPDIF output for high‑fidelity sound.
The manual details BIOS features such as AMI 4 MB BIOS, ACPI 1.1, SMBIOS 2.3.1, and Wake‑On‑LAN support, as well as power connector requirements and operating system compatibility with Windows Vista and Windows 2000 (64‑bit). Installation guidelines and connector pin‑outs are provided for quick setup. This manual is written in Chinese.
| Maximum Memory Capacity | 4 GB |
|---|---|
| Memory Slots | 4 x DDR2 DIMM, dual‑channel |
| PCI Express Slots | 1 x PCIe x16, 2 x PCIe x1 |
| PCI Slots | 3 x PCI |
| Wi‑Fi Connector | 1 x WiFiE |
| BIOS | AMI BIOS 4 MB |
| Form Factor | ATX (12.0" x 8.6", 30.5 cm x 21.8 cm) |
| Power Connectors | 24‑pin ATX, 4‑pin 12 V |
It provides one PCI Express x16 slot, two PCI Express x1 slots, and three standard PCI slots.
Yes, it includes an HDMI_SPDIF connector that outputs SPDIF audio to HDMI devices.
