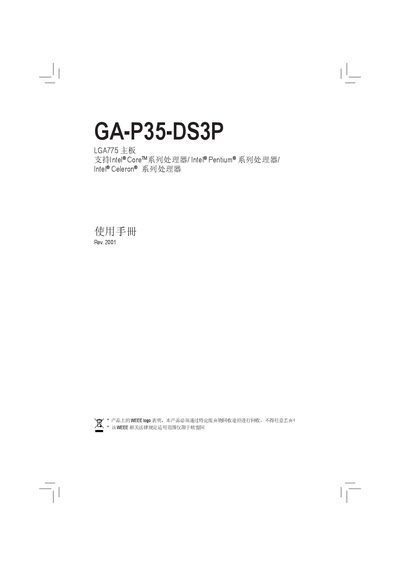

GA-P35-DS3P LGA775 motherboard supports Intel® CoreTM 2 Extreme, CoreTM 2 Quad, CoreTM 2 Duo, Pentium® Extreme Edition, Pentium® D, Pentium® 4 Extreme Edition, Pentium® 4 and Celeron® processors. This user manual mainly introduces the hardware installation, function introduction and other contents of the motherboard.
This manual covers hardware installation procedures for the GA-P35-DS3P LGA775 motherboard, including CPU and cooling‑fan mounting, memory module installation, expansion‑card fitting, and connector wiring. Detailed safety precautions are listed to protect both the board and the installer.
The document also lists the product specifications such as supported processors, chipset details, memory capacity, audio and network chips, expansion slots, SATA and USB interfaces, and RAID capabilities. Additional sections explain BIOS features, jumper settings, and battery replacement. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel P35 (Northbridge) |
| Southbridge | Intel ICH9R |
| Memory slots | 4 x 1.8V DDR2 DIMM, up to 8 GB |
| Supported memory speeds | DDR2 1066/800/667 MHz |
| Audio codec | Realtek ALC889A, supports 2/4/5.1/7.1 channels |
| Network controller | Realtek 8111B (10/100/1000 Mbit) |
| USB ports | Up to 12 × USB 2.0/1.1 |
| Form factor | ATX (30.5 cm × 24.4 cm) |
It uses an LGA775 socket for compatible Intel processors.
The board has four 1.8 V DDR2 DIMM slots supporting up to 8 GB of RAM.
