YASKAWA Varispeed L7 Manuals

ManualLib has 3 documents for the YASKAWA Varispeed L7 (Industrial Supply): 3 user manuals. Every file can be read online or downloaded as a PDF for free.

User Manual 3

Key facts

Brand
YASKAWA
Model
Varispeed L7
Documents
3
Languages
EN · ZH
Last added
2023-11-17

Start here

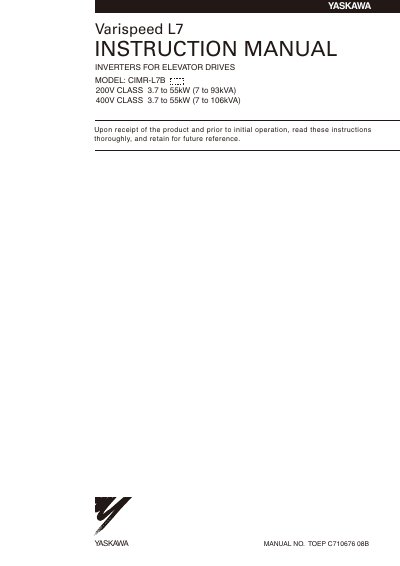

Yaskawa Varispeed L7 Inverter Instruction Manual

Yaskawa Varispeed L7 Inverter Instruction Manual

User Manual 352 pages · 9.7 MB · EN

This manual is intended to ensure the correct application of Yaskawa's Varispeed L7 series inverters for elevator drives. It covers safety precautions, delivery checks, wiring, parameter setting, trial operation, and maintenance procedures.

Key sections include detailed safety warnings, wiring guidelines, motor selection requirements, user parameter configuration, and step‑by‑step trial operation instructions, all aimed at preventing injury, equipment damage, and ensuring reliable inverter performance.

Read online

YASKAWA Varispeed L7 specifications

200 V class power range3.7 to 55 kW (7 to 98 kVA)
400 V class power range3.7 to 55 kW (7 to 106 kVA)
Grounding resistance200 V class: 100 Ω or less; 400 V class: 10 Ω or less
Cooling air temperatureBelow 45°C for air entering inverters
EMC standardEN61800-3
Capacitor discharge wait5 minutes after disconnecting power

Source: Yaskawa Varispeed L7 Inverter for Lift Instruction Manual

All YASKAWA Varispeed L7 documents by type

User Manual 3

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

What power and voltage classes does the Varispeed L7 inverter cover?

It covers 200 V class and 400 V class units from 3.7 to 55 kW.

From: Yaskawa Varispeed L7 Inverter for Lift Instruction Manual

How long must I wait after turning off power before maintenance?

Wait 5 minutes for capacitor discharge after disconnecting the power supply.

From: Yaskawa Varispeed L7 Inverter for Lift Instruction Manual

Can the Varispeed L7 transformer be used with non‑YASKAWA PM motors?

No. The manual states that only YASKAWA‑produced PM motors should be used; other PM motors may not drive correctly.

From: YASKAWA CIMR-L7B Varispeed L7 Elevator Frequency Transformer User Manual

What grounding type is required for the 200 V and 400 V versions?

The 200 V version requires D‑type grounding, while the 400 V version requires C‑type grounding.

From: YASKAWA CIMR-L7B Varispeed L7 Elevator Frequency Transformer User Manual
