The YAMAHA REV 100 digital reverberator is a high-quality, low-cost, easy-to-use stereo reverberator. It can be used for indoor recording and amplification. It has two input and output stereo interfaces. It can produce high-quality stereo reverberation effects while also producing added delay and modulation effects. 16 digital analog and digital converters ensure high-quality sound and large frequency response range. It has a sampling rate of 44.1kHz.
The Yamaha REV100 is a high‑quality, low‑cost stereo digital reverb with two stereo input and output jacks, 44.1 kHz sampling rate, and 16‑bit ADC/DAC conversion. It offers a variety of reverb, delay and modulation effects selectable via a rotary knob and program buttons.

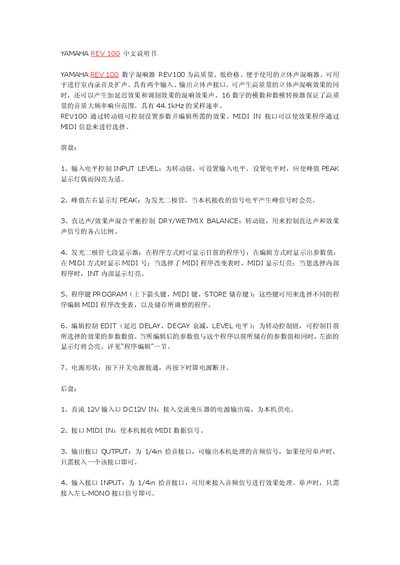

This manual explains the front‑panel controls, power and I/O connections, how to select and edit programs, store settings, and use the MIDI IN interface for program changes and channel selection. Detailed parameter tables and step‑by‑step procedures are included. This manual is written in Chinese.
| Sample Rate | 44.1 kHz |
|---|---|
| Bit Depth | 16‑bit |
| Power Input | DC 12 V |
| Input/Output Connectors | 1/4 in stereo jacks (2 inputs, 2 outputs) |
| MIDI Interface | MIDI IN |
| Number of Programs | 99 |
Use the up/down arrow keys to display the desired program number on the seven‑segment display.
Turn the EDIT knob to adjust DELAY, DECAY, or LEVEL for the currently selected effect.
Press the STORE key; the program number will flash, then press STORE again to confirm storage.
Hold the MIDI key while powering on, then use the up/down arrows to select the desired channel (OMNI or 1‑16).
