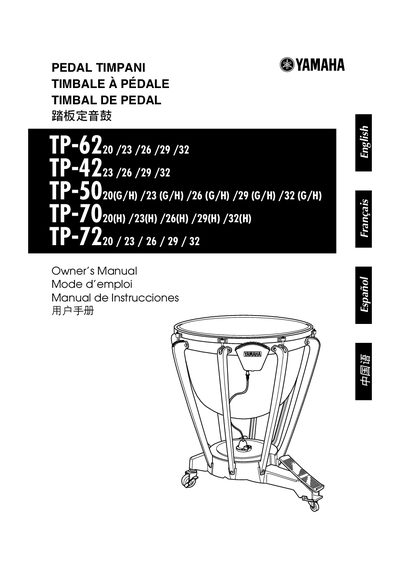

YAMAHA TP-6220 /23 /26 /29 /32 TP-4223 /26 /29 /32 TP-5020(G/H) /23 (G/H) /26 (G/H) /29 (G/H) /32 (G/H) TP-7020(H) /23(H) /26(H) /29(H) /32(H) TP-7220 23 26 29 32 PEDAL TIMPANI Owner&rsquo

About this manual

The document serves as an owner's guide for various Yamaha pedal timpani models. It details initial setup procedures required after unpacking to restore factory tuning settings, covering head alignment and pedal positioning.

Subsequent sections explain how to adjust the instrument's sound by tuning the head bolts to specific notes based on kettle size. The manual also covers pedal adjustment for balance and spring tension, as well as lubrication points for maintenance.

What's inside

• Nomenclature & Lubrication
• Before Using The Pedal Timpani
• Adjusting The Sound Of Your Timpani
• Pedal Adjustment
• Tuning Indicator Adjustment

Frequently asked questions

How often should the moving parts of the tuning mechanism be lubricated?

Lubrication should be performed at least once a year, or as needed.

What is the standard striking point for tuning the timpani head?

The standard striking point lies at distance B from the kettle edge, which corresponds to 1/4 to 1/3 of distance A (distance between kettle edge and center of head).

What is the lowest note for a 26-inch timpani?

The lowest sound of a 26" timpani should be tuned to A.
