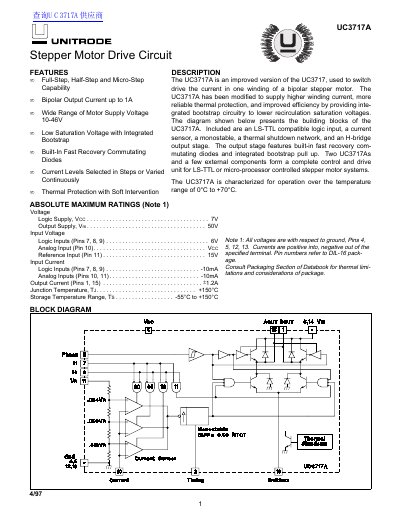

UNITRODE UC3717A Stepper Motor Drive Circuit Datasheet
The UNITRODE UC3717A is an improved stepper motor drive circuit designed to switch current in one winding of a bipolar stepper motor. It supports full-step, half-step, and micro-step capabilities with bipolar output currents up to 1A and operates over a motor supply voltage range of 10-46V. The device includes built-in fast recovery commutating diodes and an integrated bootstrap circuit to lower recirculation saturation voltages and improve efficiency.
The circuit incorporates an LS-TTL compatible logic input, a current sensor, a monostable timer, a thermal shutdown network, and an H-bridge output stage. Two UC3717A devices along with a few external components form a complete control and drive unit for LS-TTL or micro-processor controlled stepper motor systems. The device is characterized for operation over a temperature range of 0°C to +70°C.
UNITRODE UC3717 specifications
| Output Current | ±1.2A |
|---|---|
| Motor Supply Voltage | 10-46V |
| Logic Supply Voltage | 4.75V to 5.25V |
| Operating Temperature Range | 0°C to +70°C |
| Junction Temperature | +150°C |
| Thermal Shutdown Temperature | +160°C to +180°C |
Source: UNITRODE UC3717A Stepper Motor Drive Circuit Datasheet
All UNITRODE UC3717 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of the UC3717A?
The maximum output current is ±1.2A.
From: UNITRODE UC3717A Stepper Motor Drive Circuit Datasheet
What is the operating temperature range for the UC3717A?
The device is characterized for operation over the temperature range of 0°C to +70°C.
From: UNITRODE UC3717A Stepper Motor Drive Circuit Datasheet
What is the operating temperature range for the UC1717?
The UC1717 is characterized for operation over the full military temperature range of -55°C to +125°C.
From: UNITRODE UC1717/UC2717/UC3717 Stepper Motor Drive Circuit Datasheet
What are the features of this stepper motor drive circuit?
Features include half-step and full-step capability, bipolar constant current motor drive, built-in fast recovery Schottky commutating diodes, and a wide range of current control from 5-1000mA.
From: UNITRODE UC1717/UC2717/UC3717 Stepper Motor Drive Circuit Datasheet
