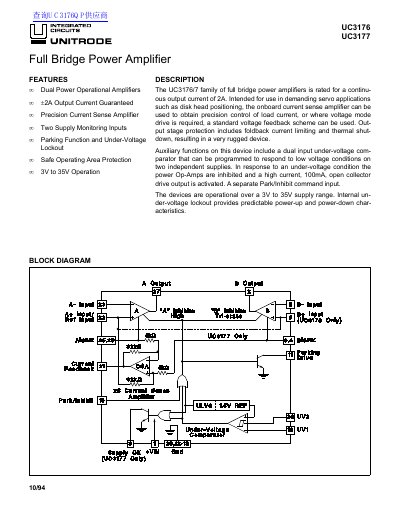

UNITRODE UC3176/UC3177 Full Bridge Power Amplifier Datasheet
The UC3176/7 family of full bridge power amplifiers is rated for a continuous output current of 2A. These devices are intended for demanding servo applications such as disk head positioning. The onboard current sense amplifier allows for precision control of load current, while a standard voltage feedback scheme can be used where voltage mode drive is required.
Read onlineUNITRODE UC3176 specifications
| Output Current (Continuous) | 2A |
|---|---|
| Supply Voltage Range | 3V to 35V |
| Operating Junction Temperature | -55°C to +150°C |
| Unity Gain Bandwidth | 1 MHz |
| Slew Rate | 1 V/us |
Source: UNITRODE UC3176/UC3177 Full Bridge Power Amplifier Datasheet
All UNITRODE UC3176 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current?
The device is rated for a continuous output current of 2A.
From: UNITRODE UC3176/UC3177 Full Bridge Power Amplifier Datasheet
What is the supply voltage range?
The devices operate over a 3V to 35V supply range.
From: UNITRODE UC3176/UC3177 Full Bridge Power Amplifier Datasheet
What is the maximum supply voltage for the UC3176/UC3177?
The absolute maximum input supply voltage is 40V.
From: Unitrode UC3176/UC3177 Full Bridge Power Amplifier Datasheet
What are the operating junction temperature limits?
The devices operate from -55°C to +150°C.
From: Unitrode UC3176/UC3177 Full Bridge Power Amplifier Datasheet
