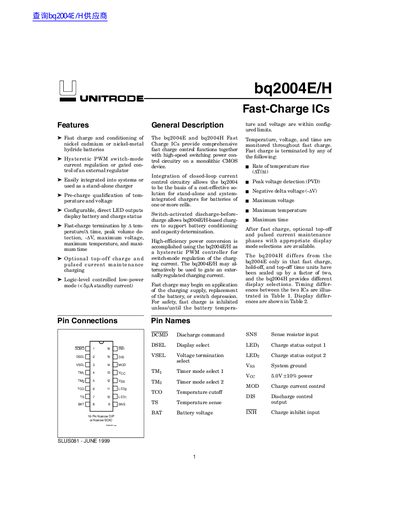

UNITRODE bq2004E/H Fast-Charge IC Datasheet
Datasheet 16 pages · 99 KB · EN
The UNITRODE bq2004E/H Fast-Charge ICs provide comprehensive fast charge control functions together with high-speed switching power control circuitry on a monolithic CMOS device. These chips are designed to be the basis of cost-effective solutions for stand-alone and system-integrated chargers for batteries of one or more cells.
Read onlineUNITRODE bq2004 specifications
| Input Voltage | 5.0V +10% |
|---|---|
| Standby Current | < 5A |
| Package Type | 16-Pin Narrow DIP or Narrow SOIC |
All UNITRODE bq2004 documents by type
Datasheet 3
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How often does the device sample the battery voltage during fast charge?
The bq2004E/H samples the voltage at the BAT pin once every 34 seconds.
How often does the IC sample the battery voltage during fast charge?
The bq2004E/H samples the voltage at the BAT pin once every 34 seconds.
What battery types does the bq2004 support?
It supports fast charge and conditioning of nickel cadmium or nickel-metal-hydride batteries.
How is the bq2004 controlled?
It uses hysteretic PWM switch-mode current regulation or gated control of an external regulator.
