Unitrode Products UCC1800/1/2/3/4/5 UCC2800/1/2/3/4/5 UCC3800/1/2/3/4/5 handbook(2)

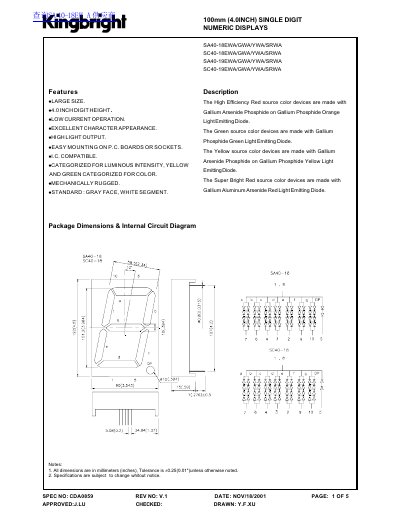

This document provides technical specifications for Kingbright 100mm (4.0 inch) single digit numeric displays. The displays are categorized by color (High Efficiency Red, Green, Yellow, and Super Bright Red) and are available in both Common Anode and Common Cathode configurations. They feature excellent character appearance, low current operation, and are designed for easy mounting on P.C. boards or sockets.
Read onlineUNITRODE UCC1800 specifications
| Digit Height | 4.0 inch (100mm) |
|---|---|
| Available Colors | Red, Green, Yellow, Super Bright Red |
| Operating Temperature | -40°C To +85°C |
| DC Forward Current (Red) | 30 mA |
| Peak Forward Current (Red) | 160 mA |
| Reverse Voltage | 5 V |
Source: Unitrode Products UCC1800/1/2/3/4/5 UCC2800/1/2/3/4/5 UCC3800/1/2/3/4/5 handbook(2)
All UNITRODE UCC1800 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available colors for these displays?
The displays are available in High Efficiency Red, Green, Yellow, and Super Bright Red.
From: Unitrode Products UCC1800/1/2/3/4/5 UCC2800/1/2/3/4/5 UCC3800/1/2/3/4/5 handbook(2)
What is the operating temperature range?
The operating and storage temperature range is from -40°C to +85°C.
From: Unitrode Products UCC1800/1/2/3/4/5 UCC2800/1/2/3/4/5 UCC3800/1/2/3/4/5 handbook(2)
What is the typical starting supply current for these controllers?
The typical starting supply current is 100uA.
From: Unitrode UCC1800/1/2/3/4/5, UCC2800/1/2/3/4/5, UCC3800/1/2/3/4/5 Datasheet
Do these devices have internal soft start?
Yes, they feature internal full-cycle soft start.
From: Unitrode UCC1800/1/2/3/4/5, UCC2800/1/2/3/4/5, UCC3800/1/2/3/4/5 Datasheet
What are the operating temperature ranges for the different Unitrode UCC180x, UCC280x, and UCC380x series?
The UCC180x series operates from -55°C to +125°C, the UCC280x series from -40°C to +85°C, and the UCC380x series from 0°C to +70°C.
What is the typical starting supply current for these devices?
The typical starting supply current is 100uA.
