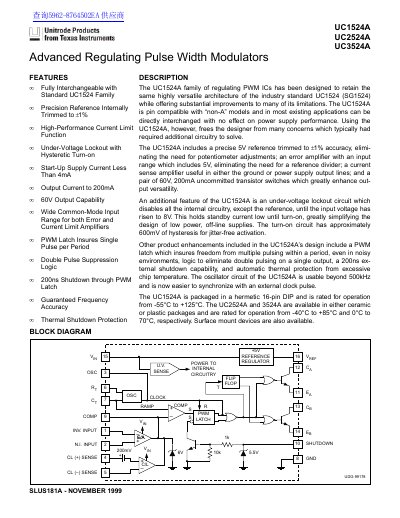

Unitrode UC1524A/UC2524A/UC3524A Advanced Regulating Pulse Width Modulators Datasheet
This document provides technical specifications for the Unitrode UC1524A family of regulating PWM ICs, which are fully interchangeable with the standard UC1524 family. Key features include a precision 5V reference internally trimmed to +1%, high-performance current limit function, and under-voltage lockout with hysteretic turn-on.
Read onlineUNITRODE UC3524 specifications
| Output Current | 200mA |
|---|---|
| Output Voltage Capability | 60V |
| Reference Output Voltage | 5V |
| Reference Accuracy | +1% |
| Start-Up Supply Current | Less than 4mA |
| Operating Temperature Range (UC1524A) | -55°C to +125°C |
| Operating Temperature Range (UC2524A) | -40°C to +85°C |
| Operating Temperature Range (UC3524A) | 0°C to 70°C |
| Thermal Shutdown Threshold | 165°C |
| Package Type | 16-pin DIP |
Source: Unitrode UC1524A/UC2524A/UC3524A Advanced Regulating Pulse Width Modulators Datasheet
All UNITRODE UC3524 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reference output voltage accuracy?
The reference is internally trimmed to +1% accuracy.
From: Unitrode UC1524A/UC2524A/UC3524A Advanced Regulating Pulse Width Modulators Datasheet
What is the maximum output current?
The device supports an output current up to 200mA.
From: Unitrode UC1524A/UC2524A/UC3524A Advanced Regulating Pulse Width Modulators Datasheet
Can these devices be used in push-pull configurations?
Yes, the dual alternating outputs allow either single-ended or push-pull applications.
From: UNITRODE UC1524/UC2524/UC3524 Advanced Regulating Pulse Width Modulators Datasheet
