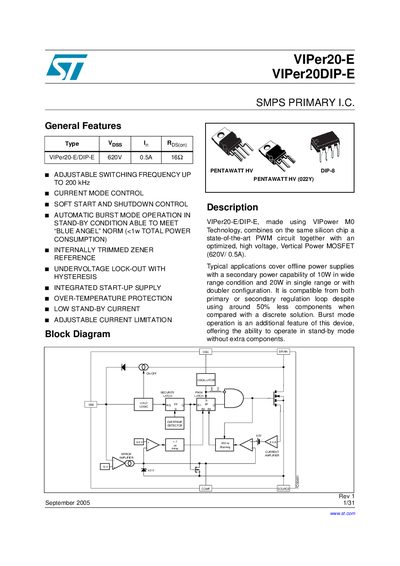

STMICROELECTRONICS VIPer20-E VIPer20DIP-E Manual
The ViPer20‑E/DIP‑E is a high‑voltage SMPS integrating a vertical power MOSFET, current‑mode control, and adjustable switching frequency up to 200 kHz. The manual provides electrical and thermal data, pin functions, typical application circuits, and design guidelines.
Key sections include maximum ratings, electrical characteristics, pin descriptions, thermal resistance, layout considerations, and revision history. The document is intended for designers and engineers implementing the device in offline power‑supply applications.
STMicroelectronics VIPER20DIP-E specifications
| Continuous Drain‑Source Voltage | 0.3 to 620 V |
|---|---|
| Maximum Current | Internally limited |
| Supply Voltage (Vopp) | 0 to 15 V |
| Power Dissipation at 25 °C | 57 W |
| Junction Operating Temperature | Internally limited |
| Storage Temperature | -65 to 150 °C |
| Thermal Resistance (junction‑case) | 1.9 °C/W |
All STMicroelectronics VIPER20DIP-E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage of the ViPer20‑E/DIP‑E?
The device can handle a continuous drain‑source voltage from 0.3 V up to 620 V.
What supply voltage range does the ViPer20‑E/DIP‑E support?
The supply voltage (Vopp) is specified from 0 V to 15 V.
What is the maximum drain‑source voltage rating?
The device is rated for a continuous drain‑source voltage up to 620 V.
What is the storage temperature range?
The storage temperature range is –65 °C to 150 °C.
What is the power dissipation rating at 25 °C?
The maximum power dissipation at 25 °C is 57 W.
