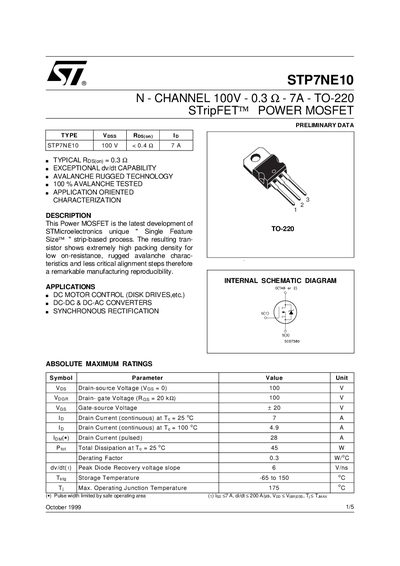

STMicroelectronics STP7NE10 Power MOSFET Datasheet
The STP7NE10 power MOSFET is built with STMicroelectronics' Single Feature Size™ strip‑based process, delivering high packing density, low on‑resistance and rugged avalanche characteristics. It is intended for applications such as DC motor control, DC‑DC and DC‑AC converters, and synchronous rectification.
The document provides comprehensive electrical parameters (drain‑source voltage, current ratings, on‑resistance, switching times), thermal data (junction‑to‑case and junction‑to‑ambient resistance), avalanche specifications, and mechanical dimensions for the TO‑220 package.
STMicroelectronics STP7NE10 specifications
| Drain‑source Voltage (VDS) | 100 V |
|---|---|
| Gate‑source Voltage (VGS) | +20 V |
| Continuous Drain Current (Id) @ 25 °C | 7 A |
| Continuous Drain Current (Id) @ 100 °C | 4.9 A |
| Pulsed Drain Current (Id,pulse) | 28 A |
| Total Power Dissipation (PD) | 45 W |
| Junction‑to‑Case Thermal Resistance (RθJC) | 3.33 °C/W |
| Maximum Junction Temperature (Tj max) | 175 °C |
| Package | TO‑220 |
All STMicroelectronics STP7NE10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain current at 25 °C?
The maximum continuous drain current at 25 °C is 7 A.
What is the rated drain‑source voltage?
The MOSFET is rated for a drain‑source voltage of 100 V.
What continuous drain current can the STP7NE10 handle at 25 °C?
It can conduct up to 7 A continuously at 25 °C.
What package type does the STP7NE10 use?
The MOSFET is supplied in a TO‑220 package.
