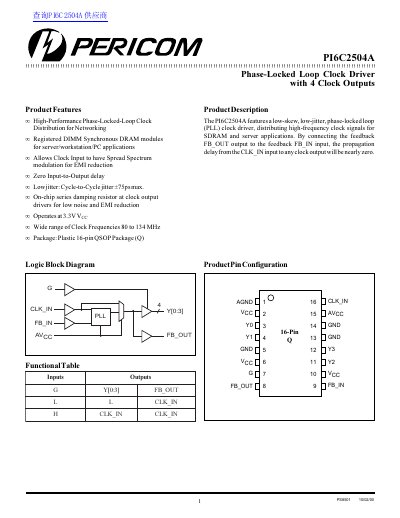

Pericom PI6C2504A Phase-Locked Loop Clock Driver Datasheet
The Pericom PI6C2504A is a high-performance Phase-Locked-Loop (PLL) clock driver designed for networking, Registered DIMM Synchronous DRAM modules, and server/workstation/PC applications. It features a low-skew, low-jitter design with a maximum cycle-to-cycle jitter of 75ps and allows for spread spectrum modulation on the clock input to reduce EMI.
The device operates at a 3.3V supply voltage and supports a wide range of clock frequencies from 80 to 134 MHz. It is packaged in a 16-pin QSOP package and includes on-chip series damping resistors at the clock outputs to minimize noise and EMI.
Pericom PI6C2504 specifications
| Clock Frequency | 80 to 134 MHz |
|---|---|
| Operating Temperature | 0 to 70 °C |
| Package Type | 16-pin QSOP |
| Cycle-to-Cycle Jitter | 75ps max |
| Max Power Dissipation | 1.0 W |
Source: Pericom PI6C2504A Phase-Locked Loop Clock Driver Datasheet
All Pericom PI6C2504 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum cycle-to-cycle jitter of the PI6C2504A?
The maximum cycle-to-cycle jitter is 75ps.
From: Pericom PI6C2504A Phase-Locked Loop Clock Driver Datasheet
Does the PI6C2504A support spread spectrum modulation?
Yes, the CLK_IN allows spread spectrum clock input for EMI reduction.
From: Pericom PI6C2504A Phase-Locked Loop Clock Driver Datasheet
What is the maximum clock frequency supported?
The device supports clock frequencies up to 80 MHz.
From: Pericom PI6C2504 Phase-Locked Loop Clock Driver Datasheet
Does the PI6C2504 support spread spectrum modulation?
Yes, the CLK_IN allows spread spectrum clock input for EMI reduction.
From: Pericom PI6C2504 Phase-Locked Loop Clock Driver Datasheet
