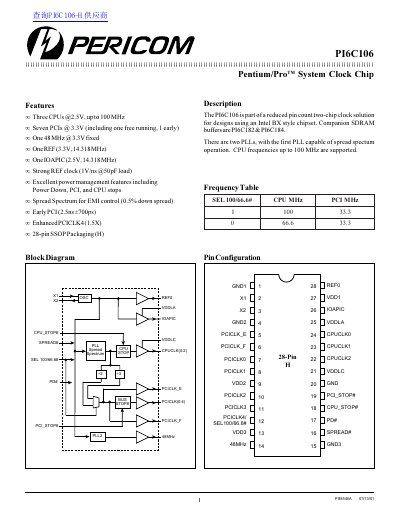

Pericom PI6C106 Pentium/Pro System Clock Chip Datasheet
The PI6C106 is a reduced pin count two-chip clock solution designed for designs using an Intel BX style chipset. It supports three CPUs at 2.5V up to 100 MHz and provides seven PCI outputs at 3.3V, including one free-running output. The chip includes two PLLs, with the first capable of spread spectrum operation for EMI control.
Read onlinePericom PI6C106 specifications
| CPU Frequency | up to 100 MHz |
|---|---|
| PCI Outputs | Seven PCIs @ 3.3V |
| REF Clock | 14.318 MHz @ 3.3V |
| IOAPIC Clock | 14.318 MHz @ 2.5V |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -65°C to +150°C |
| Package Type | 28-pin SSOP |
Source: Pericom PI6C106 Pentium/Pro System Clock Chip Datasheet
All Pericom PI6C106 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power down latency of the PI6C106?
The power down latency is less than three CPUCLK cycles.
From: Pericom PI6C106 Pentium/Pro System Clock Chip Datasheet
What is the power on latency of the PI6C106?
The power on latency is guaranteed to be less than 3ms.
From: Pericom PI6C106 Pentium/Pro System Clock Chip Datasheet
What is the power down latency of the PI6C106?
The power down latency is guaranteed to be less than three CPUCLK cycles.
Does the PI6C106 support spread spectrum operation?
Yes, the first PLL is capable of spread spectrum operation for EMI control.
