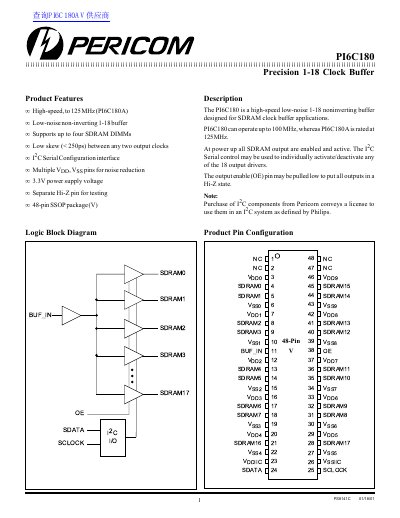

Pericom PI6C180 Precision 1-18 Clock Buffer Datasheet
The Pericom PI6C180 is a high-speed, low-noise 1-18 non-inverting buffer designed specifically for SDRAM clock buffer applications. It supports frequencies up to 100 MHz (with the PI6C180A variant rated at 125 MHz) and can drive up to four SDRAM DIMMs. The device features a 2-wire serial configuration interface for individually activating or deactivating any of the 18 output drivers and includes a separate Hi-Z pin for testing purposes.
Read onlinePericom PI6C180 specifications
| Max Frequency (PI6C180) | 100 MHz |
|---|---|
| Max Frequency (PI6C180A) | 125 MHz |
| Max SDRAM DIMMs Supported | 4 |
| Output Skew | < 250 ps |
| Supply Voltage | 3.3V |
| Package Type | 48-pin SSOP |
| Ambient Temperature Range | 0°C to +70°C |
Source: Pericom PI6C180 Precision 1-18 Clock Buffer Datasheet
All Pericom PI6C180 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency for the PI6C180?
The PI6C180 can operate up to 100 MHz, while the PI6C180A variant is rated at 125 MHz.
How many SDRAM DIMMs can the PI6C180 support?
The device supports up to four SDRAM DIMMs.
What is the maximum operating frequency for the PI6C180A?
The PI6C180A is rated at 125 MHz.
How many SDRAM DIMMs does the device support?
The device supports up to four SDRAM DIMMs.
