Start here

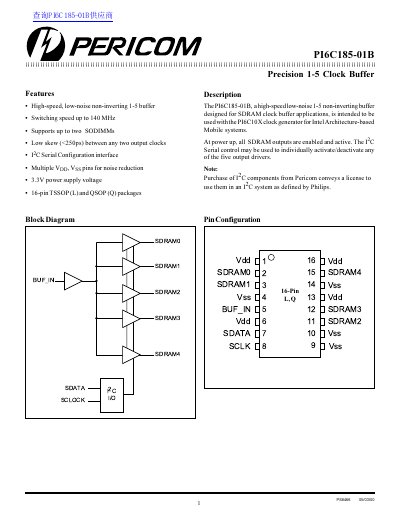

Pericom PI6C185-01B Precision 1-5 Clock Buffer Datasheet
The PI6C185-01B is a high-speed, low-noise non-inverting 1-5 clock buffer designed for SDRAM clock buffer applications, intended to be used with the PI6C10X clock generator for Intel Architecture-based Mobile systems. It supports switching speeds up to 140 MHz and features low skew between any two output clocks.
The device includes a 2-wire I2C control interface that permits individual enable/disable of each clock output and test mode enable. It is available in 16-pin TSSOP and QSOP packages and operates with a 3.3V power supply voltage.
Pericom PI6C185-01 specifications
| Switching Speed | up to 140 MHz |
|---|---|
| Output Skew | <250ps |
| Power Supply Voltage | 3.3V |
| Package Types | 16-pin TSSOP and QSOP |
| Supply Current (100 MHz) | 120 mA |
| Ambient Temperature | 0°C to +70°C |
Source: Pericom PI6C185-01B Precision 1-5 Clock Buffer Datasheet
All Pericom PI6C185-01 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many clock outputs does the device provide?
The device provides five buffered clock outputs.
From: Pericom PI6C185-01B Precision 1-5 Clock Buffer Datasheet
What is the maximum switching speed?
The maximum switching speed is up to 140 MHz.
From: Pericom PI6C185-01B Precision 1-5 Clock Buffer Datasheet
What is the primary application for this buffer?
It is designed for SDRAM clock buffer applications.
From: Pericom PI6C185-01 Precision 1-5 Clock Buffer Datasheet
What are the available package types?
The device is available in 16-pin TSSOP (L) and 16-pin QSOP (Q) packages.
From: Pericom PI6C185-01 Precision 1-5 Clock Buffer Datasheet
