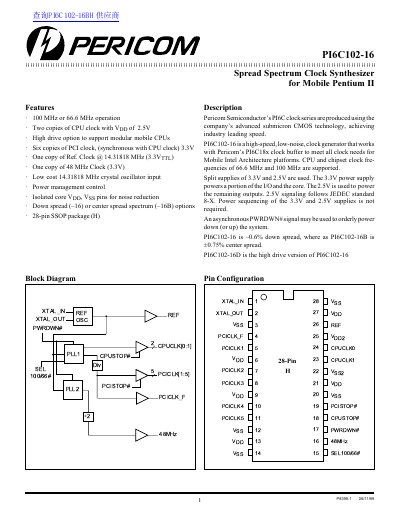

Pericom PI6C102-16 Spread Spectrum Clock Synthesizer Datasheet
The Pericom PI6C102-16 is a high-speed, low-noise clock generator designed for Mobile Intel Architecture platforms. It supports CPU and chipset clock frequencies of 66.6 MHz and 100 MHz using split supplies of 3.3V and 2.5V. The device offers options for down spread or center spread spectrum to reduce electromagnetic interference.
Read onlinePericom PI6C102-16 specifications
| Operation Frequency | 100 MHz or 66.6 MHz |
|---|---|
| Package Type | 28-pin SSOP |
| CPU Clock Outputs | Two copies with Vpp of 2.5V |
| PCI Clock Outputs | Six copies synchronous with CPU clock at 3.3V |
| Reference Clock Input | 14.31818 MHz |
| Ambient Temperature Range | 0°C to +70°C |
Source: Pericom PI6C102-16 Spread Spectrum Clock Synthesizer Datasheet
All Pericom PI6C102-16 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the supported CPU clock frequencies?
The device supports CPU and chipset clock frequencies of 66.6 MHz and 100 MHz.
From: Pericom PI6C102-16 Spread Spectrum Clock Synthesizer Datasheet
How is the operating frequency selected?
Frequency selection is controlled by the SEL100/66# pin, where High (H) selects 100 MHz and Low (L) selects 66 MHz.
From: Pericom PI6C102-16 Spread Spectrum Clock Synthesizer Datasheet
What clock frequencies does the PI6C102-16 support?
The device supports CPU and chipset clock frequencies of 66.6 MHz and 100 MHz.
How is the operating frequency selected?
The SEL100/66# pin selects the frequency: High (H) sets it to 100 MHz, while Low (L) sets it to 66 MHz.
