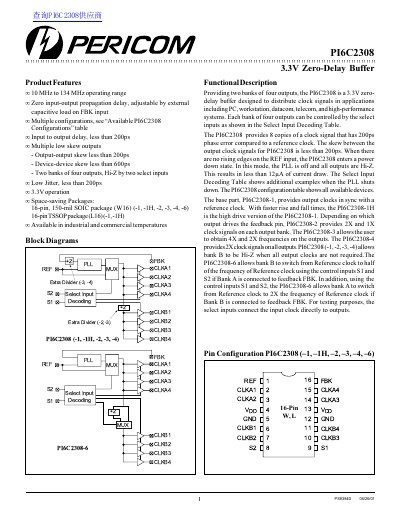

Pericom PI6C2308 3.3V Zero-Delay Buffer Datasheet
Datasheet 10 pages · 502 KB · EN
The Pericom PI6C2308 is a 3.3V zero-delay buffer designed to distribute clock signals in various applications including PCs, workstations, datacom, and high-performance systems. It provides two banks of four outputs that can be controlled by select inputs to generate up to eight copies of a clock signal with less than 200ps phase error.
Read onlinePericom PI6C2308 specifications
| Operating Frequency Range | 10 MHz to 134 MHz |
|---|---|
| Supply Voltage | 3.3V |
| Input-Output Delay | Less than 200ps |
| Output-Output Skew | Less than 200ps |
| Device-Device Skew | Less than 600ps |
| Low Jitter | Less than 200ps |
All Pericom PI6C2308 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage of the PI6C2308?
The device operates at a supply voltage of 3.3V.
Can the input-output delay be adjusted?
Yes, it can be adjusted by using an external capacitive load on the FBK input.
What is the operating frequency range of the PI6C2308A?
The device operates from 10 MHz up to 140 MHz.
How many clock copies does the PI6C2308A provide?
It provides eight copies of the clock signal.
