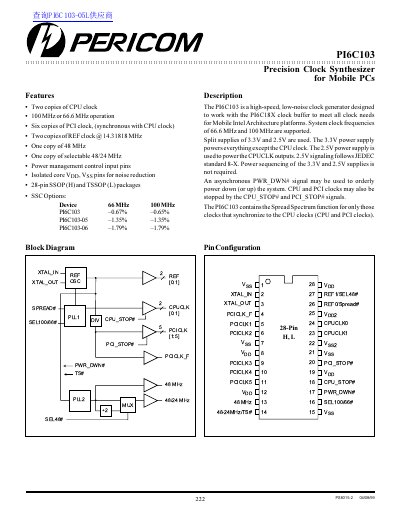

Pericom PI6C103 Precision Clock Synthesizer Datasheet
Datasheet 12 pages · 530 KB · EN
The PI6C103 is a precision clock synthesizer designed to work with the PI6C18X clock buffer to meet all clock needs for Mobile Intel Architecture platforms. It supports system clock frequencies of 66.6 MHz and 100 MHz using split supplies of 3.3V and 2.5V.
Read onlinePericom PI6C103 specifications
| System clock frequencies | 66.6 MHz and 100 MHz |
|---|---|
| Power supplies | 3.3V and 2.5V split supplies |
| CPU clock outputs | Two copies |
| PCI clock outputs | Six copies (synchronous with CPU clock) |
| Package types | 28-pin SSOP (H) and TSSOP (L) |
Source: Pericom PI6C103 Precision Clock Synthesizer Datasheet
All Pericom PI6C103 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the supported system clock frequencies?
The device supports system clock frequencies of 66.6 MHz and 100 MHz.
Does the PI6C103 require specific power sequencing?
No, power sequencing of the 3.3V and 2.5V supplies is not required.
What are the supported system clock frequencies?
The device supports system clock frequencies of 66.6 MHz and 100 MHz.
What is the maximum ambient temperature for the device with power applied?
The maximum ambient temperature with power applied is +70°C.
