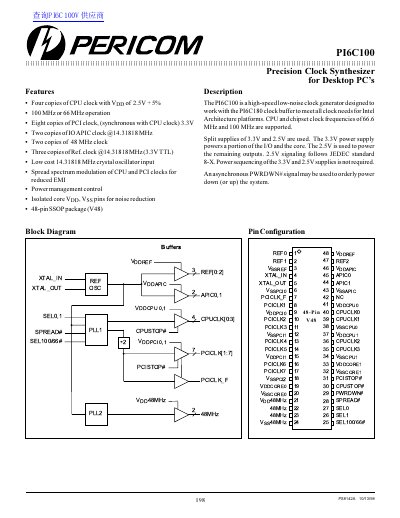

Pericom PI6C100 Precision Clock Synthesizer Datasheet
Datasheet 13 pages · 552 KB · EN
The Pericom PI6C100 is a high-speed low-noise clock generator designed to work with the PI6C180 clock buffer to meet all clock needs for Intel Architecture platforms. It supports CPU and chipset clock frequencies of 66.6 MHz and 100 MHz using split supplies of 3.3 V and 2.5V.
Read onlinePericom PI6C100 specifications
| Operating Frequencies | 66 MHz or 100 MHz |
|---|---|
| Package Type | 48-pin SSOP |
| Supply Voltage Core | 2.5V +/- 5% |
| Supply Voltage PCI/IO/APIC | 3.3V |
| Ambient Temperature Range | -0°C to +70°C |
Source: Pericom PI6C100 Precision Clock Synthesizer Datasheet
All Pericom PI6C100 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What operating frequencies does the PI6C100 support?
The device supports CPU and chipset clock frequencies of 66.6 MHz and 100 MHz.
How long does it take for the device to power up after the PWRDWN# signal goes inactive?
The power on latency is less than 3ms.
What clock frequencies does the PI6C100 support?
The device supports CPU and chipset clock frequencies of 66.6 MHz and 100 MHz.
Does the PI6C100 include spread spectrum modulation?
Yes, it includes spread spectrum modulation of CPU and PCI clocks to reduce EMI.
