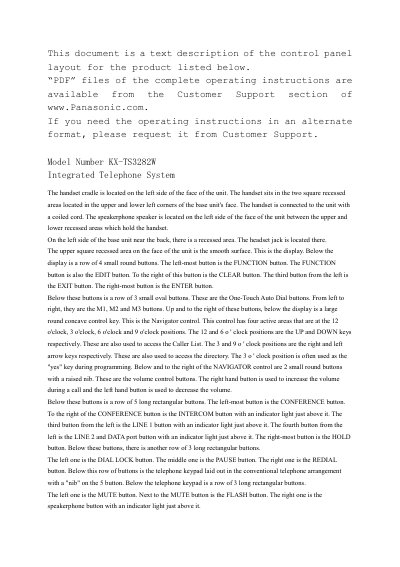

This document provides a text description of the control panel layout for the KX-TS3282W Integrated Telephone System. It describes the function and location of the buttons on the phone.
This text description outlines the physical layout of the Panasonic KX-TS3282W Integrated Telephone System, detailing the location of the handset cradle, headset jack, display, and various control keys. It identifies specific buttons such as FUNCTION, CLEAR, EXIT, ENTER, One-Touch Auto Dial (M1-M3), and the Navigator control with its directional functions.
The document further details the lower rows of buttons including CONFERENCE, INTERCOM, LINE 1/2, HOLD, DIAL LOCK, PAUSE, REDIAL, MUTE, FLASH, and SPEAKERPHONE. It also lists the column of extension buttons (EXTENSION 1 through 8) and notes the presence of a memory card slot for name indexing.
The handset cradle is located on the left side of the face of the unit.
The 12 and 6 o'clock positions are UP and DOWN keys, while the 3 and 9 o'clock positions are right and left arrow keys.
There is a column of 8 extension buttons labeled EXTENSION 1 through EXTENSION 8.
