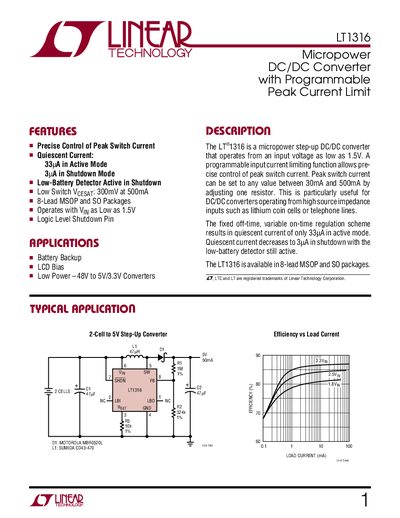

Linear Technology LT1316 Datasheet
The LT1316 is a micropower step‑up DC/DC converter that operates from input voltages as low as 1.5 V and includes a programmable peak‑current limit and low‑battery detector that remains active in shutdown mode. It is offered in 8‑lead MSOP and 8‑lead plastic SO packages and is suitable for battery‑backup and LCD‑bias applications.
The document details absolute maximum ratings, electrical characteristics, pin descriptions, typical performance curves, and design examples for both continuous and discontinuous conduction modes. Package dimensions and ordering information are also provided.
Linear Technology LT1316 specifications
| Minimum Input Voltage | 1.5 V |
|---|---|
| Maximum Switch Current | 750 mA |
| Package Options | 8‑lead MSOP and 8‑lead plastic SO |
| Low‑Battery Detector Output Current | 500 µA |
All Linear Technology LT1316 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum input voltage for the LT1316?
The LT1316 can operate from an input voltage as low as 1.5 V.
What is the maximum switch current rating?
The device’s maximum switch current is rated at 750 mA.
What is the quiescent current in shutdown mode?
The LT1316 draws about 3 µA in shutdown mode.
From: Linear Technology LT1316 Micropower DC/DC Converter Datasheet
What is the maximum switch current rating?
The device can handle up to 750 mA of switch current.
From: Linear Technology LT1316 Micropower DC/DC Converter Datasheet
