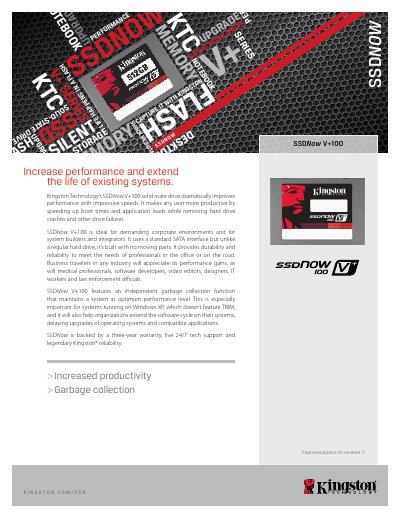

Kingston SSDNow V+100 SSD Manual
The SSDNow V+100 is a 2.5" SATA solid‑state drive designed for desktop and notebook computers. It offers higher performance, durability and a three‑year warranty with 24/7 technical support.
Key benefits include MLC NAND flash, silent operation, shock resistance, and built‑in garbage collection. The manual lists detailed specifications such as capacities, dimensions, power consumption and performance metrics.
Kingston V100 specifications
| Form factor | 2.5" |
|---|---|
| Interface | SATA 1.5Gb/sec and 3.0Gb/sec |
| Capacities | 64GB, 96GB, 128GB, 256GB, 512GB |
| Dimensions | 69.85mm x 100mm x 9.5mm |
| Weight | 128–151 grams |
| Storage temperature range | -40 °C to 85 °C |
| Operating temperature range | 0 °C to 70 °C |
| Sequential read throughput | 230 MB/s |
| Sequential write throughput | 180 MB/s |
| Power (active) | 3.4 W (typ) |
| Power (idle) | 0.05 W (typ) |
| MTBF | 1,000,000 hours |
Source: Kingston SSDNow V+100 SSD Manual
All Kingston V100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What warranty does the SSDNow V+100 have?
It is backed by a three‑year warranty with 24/7 technical support.
What interface does the SSDNow V+100 use?
It uses a standard SATA interface (1.5 Gb/sec and 3.0 Gb/sec).
What warranty does the SSDNow V100 include?
The SSDNow V100 is covered by a three‑year warranty and 24/7 technical support.
Does the SSDNow V100 support TRIM?
Yes, the drive supports TRIM to maintain maximum performance on compatible operating systems.
