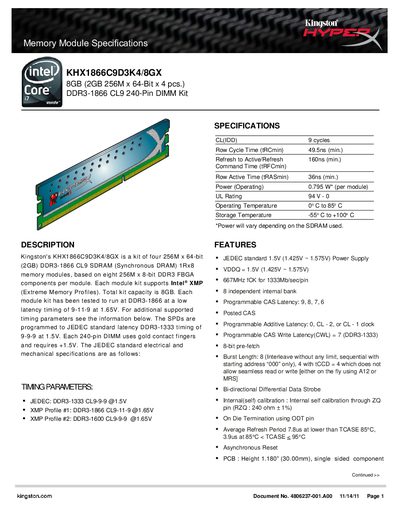

Kingston KHX1866C9D3K4/8GX Memory Module Datasheet
The KHX1866C9D3K4/8GX is a kit of four 2 GB DDR3‑1866 CL9 SDRAM modules (total 8 GB) designed for high‑performance desktop systems. Each 240‑pin DIMM uses JEDEC‑standard 1.5 V power and supports Intel® XMP profiles for easy overclocking.
Key specifications include a CAS latency of 9 cycles, operating power of 0.795 W per module, and a module height of 30.00 mm. The memory operates within 0 °C to 85 °C and is compatible with standard DDR3 slots.
Kingston KHX1866C9D3K4 specifications
| Total Capacity | 8 GB (4 × 2 GB) |
|---|---|
| Memory Speed | DDR3‑1866 |
| CAS Latency | CL9 |
| Operating Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Power Consumption (per module) | 0.795 W |
| Operating Temperature | 0 °C to 85 °C |
| Module Height | 30.00 mm |
| Row Cycle Time (tRCmin) | 49.5 ns |
All Kingston KHX1866C9D3K4 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the total capacity of the KHX1866C9D3K4/8GX memory kit?
The kit provides a total of 8 GB, made up of four 2 GB modules.
What voltage does the KHX1866C9D3K4/8GX operate at?
It operates at a standard 1.5 V, with a tolerance range of 1.425 V to 1.575 V.
What is the total capacity of the Kingston KHX1866C9D3K4/16GX kit?
The kit provides a total of 16 GB of memory, with four 4 GB modules.
What are the operating temperature limits for this memory module?
The modules operate safely between 0 °C and 85 °C.
