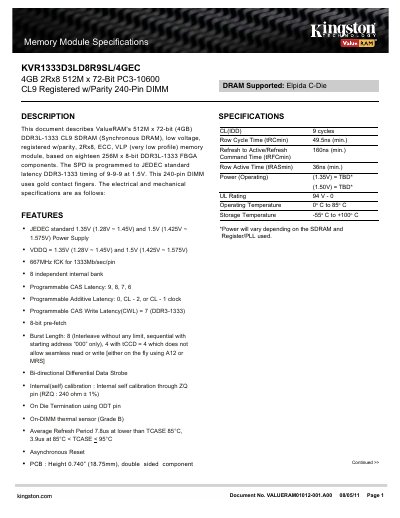

ValueRAM KVR1333D3LD8R9SL/4GEC DDR3L-1333 Registered Memory Module Datasheet
This datasheet describes the ValueRAM KVR1333D3LD8R9SL/4GEC 4 GB DDR3L‑1333 memory module, a 240‑pin registered DIMM with parity and ECC support. It provides electrical, mechanical, and performance specifications for system designers.
Key features include JEDEC‑standard 1.35 V and 1.5 V operation, programmable CAS latency (9‑6), 667 MHz fCK, eight independent internal banks, and a low‑profile height of 0.740 in (18.75 mm). The module also offers on‑DIMM thermal sensing and internal self‑calibration.
Kingston KVR4GEC specifications
| Capacity | 4 GB |
|---|---|
| Voltage | 1.35 V (1.28‑1.45 V) / 1.5 V (1.425‑1.575 V) |
| CAS Latency | Programmable 9, 8, 7, 6 |
| Clock Frequency | 667 MHz fCK (1333 Mb/s per pin) |
| Pin Count | 240‑pin DIMM |
| ECC / Parity | Registered with parity (ECC) |
| Module Height | 0.740 in (18.75 mm) |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
Source: ValueRAM KVR1333D3LD8R9SL/4GEC DDR3L-1333 Registered Memory Module Datasheet
All Kingston KVR4GEC documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage levels does the KVR1333D3LD8R9SL/4GEC module support?
It supports JEDEC standard 1.35 V (1.28‑1.45 V) and 1.5 V (1.425‑1.575 V).
From: ValueRAM KVR1333D3LD8R9SL/4GEC DDR3L-1333 Registered Memory Module Datasheet
How many independent internal banks are in the module?
The module contains eight independent internal banks.
From: ValueRAM KVR1333D3LD8R9SL/4GEC DDR3L-1333 Registered Memory Module Datasheet
What voltage ranges does the Kingston KVR1333D3LD8R9S/4GEC support?
It supports a standard 1.35 V supply (1.28 V – 1.45 V) and a 1.5 V supply (1.425 V – 1.575 V).
Does this memory module include ECC protection?
Yes, the module is a registered ECC memory module with parity support.
