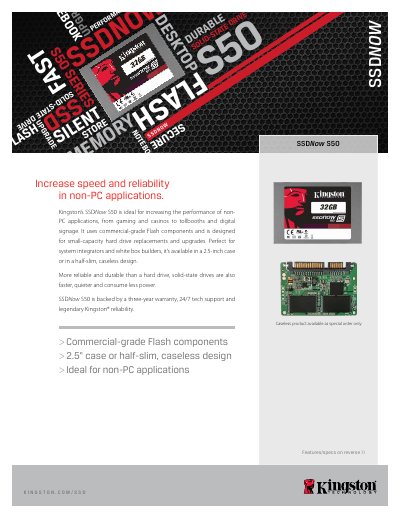

Kingston SSDNow S50 Datasheet
The SSDNow S50 is a solid‑state drive designed for non‑PC applications such as gaming, digital signage, and tollbooths. It is available in a standard 2.5‑inch case or a half‑slim caseless form factor and uses commercial‑grade flash components for reliability and low power consumption.
The drive supports SATA Rev. 2.0 (3 Gb/s) and SATA Rev. 1.0 (1.5 Gb/s) interfaces, comes in 16 GB and 32 GB capacities, and provides sequential read speeds up to 130 MB/s. Kingston backs the product with a three‑year warranty and 24/7 technical support.
Kingston S50 specifications
| Form factor | 2.5" or half‑slim caseless |
|---|---|
| Interface | SATA Rev. 2.0 (3 Gb/s), SATA Rev. 1.0 (1.5 Gb/s) |
| Capacities | 16 GB, 32 GB |
| Sequential Read | 16 GB – 90 MB/s, 32 GB – 130 MB/s |
| Sequential Write | 16 GB – 35 MB/s, 32 GB – 60 MB/s |
| Random 4K Read | 3000 IOPS (both capacities) |
| Power Consumption (Idle) | 0.491 W (typical) |
| Dimensions (2.5" case) | 69.85 mm × 100 mm × 9.5 mm |
| Weight (2.5" case) | 87.48 g |
| MTBF | 1,000,000 hours |
Source: Kingston SSDNow S50 Datasheet
All Kingston S50 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What warranty does the SSDNow S50 have?
It comes with a three‑year warranty and free 24/7 technical support.
What capacities are available for the SSDNow S50?
The drive is offered in 16 GB and 32 GB capacities.
What form factors are available for the SSDNow S50?
It is offered in a 2.5" case or a half‑slim caseless design.
What is the warranty period for the SSDNow S50?
The drive comes with a three‑year warranty and 24/7 technical support.
