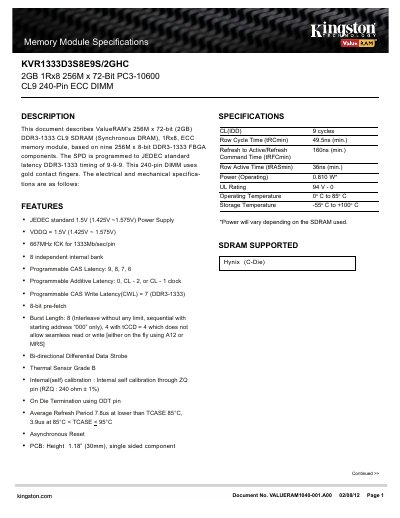

ValueRAM KVR1333D3S8E9S/2GHC 2GB DDR3-1333 ECC Memory Module Datasheet
This document describes the ValueRAM KVR1333D3S8E9S/2GHC 2 GB DDR3‑1333 CL9 ECC memory module, a 240‑pin DIMM built with nine 256 M × 8‑bit FBGA components. It is intended for server and workstation applications requiring error‑correcting code (ECC) memory.
Key features include JEDEC‑standard 1.5 V operation, programmable CAS latencies of 9‑6, an 8‑bit pre‑fetch architecture, bi‑directional differential data strobe, on‑die termination, and a thermal sensor (Grade B). Mechanical specifications list a PCB height of 1.18 in (30 mm) and a single‑sided component layout.
Kingston KVR1333D3S8E9S specifications
| Supply Voltage | 1.5 V (1.425 V ~ 1.575 V) |
|---|---|
| VDDQ | 1.5 V (1.425 V ~ 1.575 V) |
| Clock Frequency (fCK) | 667 MHz |
| CAS Latency (CL) | 9, 8, 7, 6 |
| Burst Length | 8 |
| Thermal Sensor Grade | B |
| Average Refresh Period | 7.8 µs (≤85 °C), 3.9 µs (85 °C < TCASE < 95 °C) |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
Source: ValueRAM KVR1333D3S8E9S/2GHC 2GB DDR3-1333 ECC Memory Module Datasheet
All Kingston KVR1333D3S8E9S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage of the module?
The module operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
From: ValueRAM KVR1333D3S8E9S/2GHC 2GB DDR3-1333 ECC Memory Module Datasheet
Which CAS latency values are supported?
The memory supports programmable CAS latencies of 9, 8, 7, and 6.
From: ValueRAM KVR1333D3S8E9S/2GHC 2GB DDR3-1333 ECC Memory Module Datasheet
What is the operating voltage of the KVR1333D3S8E9S/2GEC module?
It operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
From: ValueRAM KVR1333D3S8E9S/2GEC DDR3-1333 ECC Memory Module Datasheet
Which CAS latency settings are supported?
The module supports programmable CAS latencies of 9, 8, 7, and 6.
From: ValueRAM KVR1333D3S8E9S/2GEC DDR3-1333 ECC Memory Module Datasheet
