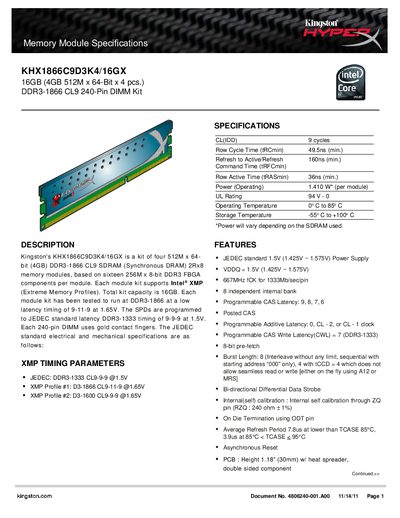

Kingston KHX1866C9D3K4/16GX Memory Module Datasheet
The Kingston KHX1866C9D3K4/16GX kit consists of four 4 GB DDR3‑1866 CL9 240‑pin DIMM modules, each built to JEDEC standards and featuring gold‑plated contacts and a heat spreader. The modules support Intel® XMP profiles for easy performance tuning and are designed for reliable operation in a range of desktop and workstation environments.
Technical specifications include a CAS latency of 9 cycles, operating voltage of 1.5 V, power consumption of about 1.410 W per module, and operating temperature limits from 0 °C to 85 °C. Detailed mechanical dimensions and thermal characteristics are provided for system integrators.
Kingston KHX16GX specifications
| Capacity | 16 GB (4 GB per module) |
|---|---|
| Type | DDR3‑1866 CL9 240‑Pin DIMM Kit |
| CAS Latency | CL9 cycles |
| Row Cycle Time (tRCmin) | 49.5 ns |
| Row Active Time (tRASmin) | 36 ns |
| Operating Power | 1.410 W per module |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
| Voltage | 1.5 V (JEDEC standard) |
| Module Dimensions | 133.35 mm × 30.00 mm × 18.80 mm |
All Kingston KHX16GX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the total capacity of the Kingston KHX1866C9D3K4/16GX kit?
The kit provides a total of 16 GB of memory, with four 4 GB modules.
What are the operating temperature limits for this memory module?
The modules operate safely between 0 °C and 85 °C.
What is the total capacity of the KHX2133C11D3K4/16GX memory kit?
The kit provides a total of 16 GB, made up of four 4 GB modules.
From: Kingston KHX2133C11D3K4/16GX Memory Module Specifications
What is the operating voltage of the modules?
They use a JEDEC standard 1.5 V supply, with a range of 1.425 V to 1.575 V.
From: Kingston KHX2133C11D3K4/16GX Memory Module Specifications
