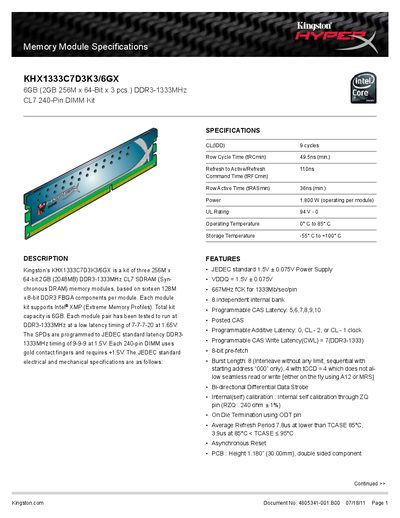

Kingston KHX1333C7D3K3/6GX Memory Module Specifications
The KHX1333C7D3K3/6GX kit consists of three 2 GB DDR3‑1333 MHz CL7 240‑pin DIMM modules, each built from sixteen 128 M×8‑bit DDR3 FBGA components. The modules support Intel XMP profiles and are rated for a low‑latency timing of 7‑7‑7‑20 at 1.65 V, while the SPD programming follows the JEDEC 9‑9‑9 standard at 1.5 V.
Each module consumes 1.800 W of power, operates between 0 °C and 85 °C, and can be stored from –55 °C to +100 °C. Features include eight independent internal banks, 8‑bit pre‑fetch, burst length of 8, and programmable CAS latencies (5‑10). The modules use gold‑contact fingers and require a standard 1.5 V supply with an additional 0.075 V VDDQ offset.
Kingston KHX6GX specifications
| Total capacity | 6 GB |
|---|---|
| Module type | 240‑pin DIMM |
| Memory speed | DDR3‑1333 MHz |
| CAS latency (low‑latency mode) | 7‑7‑7‑20 |
| JEDEC standard latency | 9‑9‑9 |
| Operating voltage | 1.5 V |
| Power per module | 1.800 W |
| Operating temperature | 0 °C to 85 °C |
| Storage temperature | -55 °C to +100 °C |
| Number of internal banks | 8 |
| Prefetch size | 8‑bit |
| Burst length | 8 |
| VDDQ voltage | 1.5 V + 0.075 V |
Source: Kingston KHX1333C7D3K3/6GX Memory Module Specifications
All Kingston KHX6GX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the total capacity of the Kingston KHX1333C7D3K3/6GX kit?
The kit provides a total capacity of 6 GB.
From: Kingston KHX1333C7D3K3/6GX Memory Module Specifications
What voltage does each module require?
Each 240‑pin DIMM requires a standard +1.5 V supply.
From: Kingston KHX1333C7D3K3/6GX Memory Module Specifications
What is the total capacity of the Kingston KHX1600C9D3K3/6GX kit?
The kit provides a total capacity of 6 GB, made up of three 2 GB modules.
From: Kingston KHX1600C9D3K3/6GX Memory Module Specifications
What operating temperature range does this memory kit support?
It operates safely from 0 °C up to 85 °C.
From: Kingston KHX1600C9D3K3/6GX Memory Module Specifications
What operating temperature range does the module support?
It operates from 0 °C up to 85 °C.
What is the required supply voltage for the memory modules?
The modules use a JEDEC standard 1.5 V supply (range 1.425 V ~ 1.575 V).
