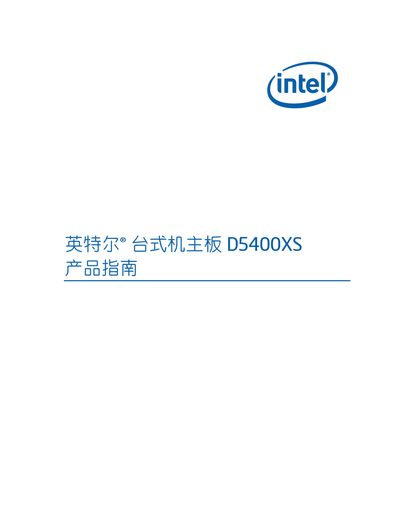

This document is a revision record of the Intel® Desktop Board D5400XS Product Guide, which describes the features and characteristics of the board.
This product guide is intended for qualified technicians who need detailed information on the Intel D5400XS desktop motherboard, including safety, compliance and hardware specifications. It is not aimed at general consumers.
The document covers motherboard functions, step‑by‑step installation of processors, memory, expansion cards and cables, BIOS update procedures, RAID setup, error codes, power management, and regulatory compliance details. This manual is written in Chinese.
| Processor Support | Up to two Intel processors with LGA771 socket |
|---|---|
| Memory Slots | Four DDR2 SDRAM (FBDIMM) slots, up to 16 GB, 800/667 MHz |
| Chipset | Intel 5400 chipset (MCH + 6321 ESB I/O controller) |
| Audio | 8‑channel (7.1) high‑fidelity audio with IDT STAC9274 codec |
| USB Ports | Up to 10 USB 2.0 ports |
| SATA Ports | Six SATA III (3 Gb/s) ports and two eSATA ports |
| Supported Operating Systems | Various Microsoft Windows versions (Vista, 7, XP, etc.) |
It supports up to two Intel processors that use the LGA771 socket.
The motherboard provides up to ten USB 2.0 ports.
It uses the Intel 5400 chipset, including the MCH and 6321 ESB I/O controller.
