Key facts
- Brand
- ICOM
- Model
- IC-7000
- Documents
- 2
- Languages
- EN
- Last added
- 2023-10-15
Start here

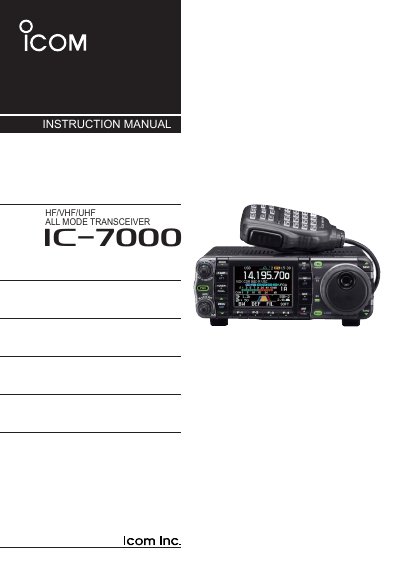

Icom IC-7000 HF/VHF/UHF All Mode Transceiver Instruction Manual
This manual contains important safety and operating instructions for the Icom IC-7000 transceiver. It highlights key features such as IFDSP, all-mode capability covering 160–2 m and 70 cm bands, compact design with a detachable front panel, high frequency stability of ±0.5 ppm, and a Baudot RTTY demodulator. The device also includes a simple band scope function, selectable SSB transmission passband width, and a standard voice synthesizer/voice recorder. Supplied accessories include a hand microphone (HM-151), DC power cable, spare fuses, and various cables and plugs.
Read onlineIcom IC-7000 specifications
| Frequency Range | 160–2 m and 70 cm |
|---|---|
| Frequency Stability | ±0.5 ppm |
| Included Microphone | HM-151 |
| Power Input | DC 13.8V |
Source: Icom IC-7000 HF/VHF/UHF All Mode Transceiver Instruction Manual
All Icom IC-7000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What are the frequency ranges supported by the IC-7000?
The transceiver supports all modes covering 160–2 m and 70 cm bands.
From: Icom IC-7000 HF/VHF/UHF All Mode Transceiver Instruction Manual
What is the frequency stability of the IC-7000?
The transceiver has a high frequency stability of ±0.5 ppm.
From: Icom IC-7000 HF/VHF/UHF All Mode Transceiver Instruction Manual
What are the safety precautions for connecting power?
Never connect the transceiver to an AC outlet or DC power supply that uses more than 16 V, as this could cause a fire or electric hazard.
From: Icom IC-7000 HF/VHF/UHF All Mode Transceiver Service Manual
What is the maximum RF signal level allowed at the antenna connector?
Do not apply an RF signal of more than 20 dBm (100 mW) to the antenna connector, as this could damage the transceiver's front end.
From: Icom IC-7000 HF/VHF/UHF All Mode Transceiver Service Manual
