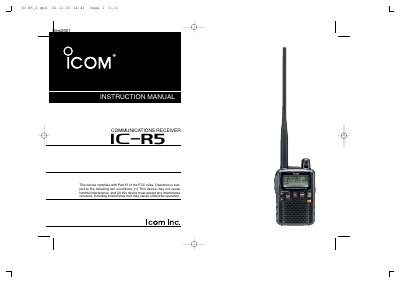

Icom IC-R5 Communications Receiver Instruction Manual
This manual provides operating instructions for the Icom IC-R5 Communications Receiver, a device designed to receive RF energy from 0.150 MHz to 1309.995 MHz. It details the preparation of the unit, including battery installation and charging, as well as the use of supplied accessories like the hand strap and belt clip.
Read onlineICOM IC-R5 specifications
| Frequency range (USA) | 894.000-1309.995 MHz, 0.150-29.995 MHz |
|---|---|
| Frequency range (Europe) | 0.495 — 1309.995 MHz |
| Number of memory channels | 1250 channel |
| Frequency stability | ±6 ppm max. |
| Power supply requirement | 2x AA(R6) Ni-Cd, alkaline cells or external power supply (BC-136, CP-17) |
| Current drain (at 3.0 V) | 170 mA typical |
| Weight (with antenna and battery) | 185 g |
All ICOM IC-R5 documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum AC voltage for the IC-R5?
Never connect the receiver to an AC outlet or DC power supply that uses more than 6.5 V.
What is the maximum allowable RF signal at the antenna connector?
Do not apply an RF signal of more than 20 dBm (100mW) to the antenna connector.
What is the frequency range of the IC-R5?
The IC-R5 receives RF energy from 0.150 MHz to 1309.995 MHz.
What type of batteries are required?
The receiver requires 2 R6 (AA) size Ni-Cd, Ni-MH, or alkaline cell batteries.
