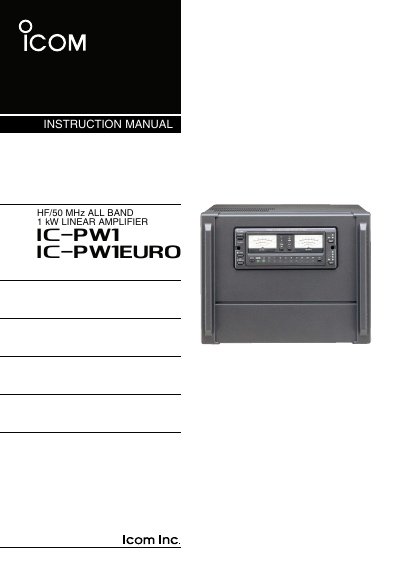

iPW1/iPW1EURO HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER Instruction Manual
This manual provides instructions for the Icom IC-PW1 and IC-PW1EURO HF/50 MHz all-band 1 kW linear amplifiers. It details safety precautions, unpacking, and installation steps including grounding and antenna connections. The guide explains how to set up the remote controller and configure the amplifier for use with Icom Cl-V transceivers or non-Icom exciters.
Read onlineICOM IC-PW1 specifications
| Power Output | 1 kW |
|---|---|
| Operating Temperature | -10°C to +40°C |
| Circuit Breaker Capacity | 20 A (U.S.A.) / 15 A (Europe) |
| ALC Control Voltage | -10 to 0 V DC |
| Send Control Max Level | 5.0 V DC/0.1 A |
Source: iPW1/iPW1EURO HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER Instruction Manual
All ICOM IC-PW1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
Can the IC-PW1/EURO be used with the AH-2 HF Automatic Antenna Tuner?
No, the IC-PW1/EURO cannot be used with the AH-2 HF AUTOMATIC ANTENNA TUNER.
From: iPW1/iPW1EURO HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER Instruction Manual
What is the maximum RF output power from the transceiver to avoid damage?
The transceiver's RF output power must be set to less than 100 W.
From: iPW1/iPW1EURO HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER Instruction Manual
What is the output power for SSB modes?
The output power is 450-600 W PEP at 90-132 V AC and 950-1150 W PEP at 180-264 V AC.
From: ICOM IC-PW1 HF/50 MHz All Band Linear Amplifier Service Manual
What is the auto tuning accuracy for the antenna tuner?
The auto tuning accuracy ensures an SWR of 1.5:1 or less.
From: ICOM IC-PW1 HF/50 MHz All Band Linear Amplifier Service Manual
What is the required input power to operate the antenna tuner?
The minimum required input power is 60 W.
What is the weight of the IC-PW1 linear amplifier?
The amplifier weighs 25 kg (55.12 lb).
