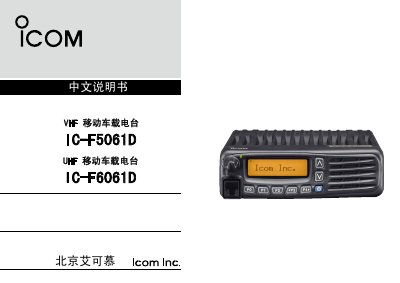

ICOM IC-F5061D/IC-F6061D VHF/UHF Mobile Radio User Manual
This manual provides instructions for the ICOM IC-F5061D VHF and IC-F6061D UHF mobile radios. It details the functions of the front and rear panels, including volume control, channel selection, scanning, and emergency features. The document explains how to operate the radio in various modes, such as analog, digital (DMR), and hybrid, and describes the use of optional accessories like hand microphones and speakers. This manual is written in Chinese.
Read onlineICOM IC-F5061 specifications
| Frequency coverage | 136–174 MHz |
|---|---|
| Number of programable channels | max. 512 channels (128 zones) |
| Operating temperature range | -30˚ to +60˚ |
| Power supply requirement | 13.6 V DC (nominal) |
| Transmit output power | 50 W / 25 W |
| Receive sensitivity | 0.25 µV typ. at 12 dB SINAD |
Source: ICOM IC-F5061/F5062/F5063 VHF Transceivers Service Manual
All ICOM IC-F5061 documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum RF signal power allowed at the antenna connector?
Do not apply an RF signal of more than 20 dBm (100 mW) to the antenna connector, as it could damage the front end.
From: ICOM IC-F5061/F5062/F5063 VHF Transceivers Service Manual
What are the key points to include when ordering replacement parts?
You must include the 10-digit Icom parts numbers, component part number and name, equipment model name and unit name, and the quantity required.
From: ICOM IC-F5061/F5062/F5063 VHF Transceivers Service Manual
What is the rated fuse current for the radio?
The rated fuse current is 20 A. Only a 20 A fuse should be used.
From: ICOM IC-F5061D/IC-F6061D VHF/UHF Mobile Radio User Manual
Can I use a hand microphone from another brand?
No, you should use the ICOM hand microphone to avoid damaging the equipment.
From: ICOM IC-F5061D/IC-F6061D VHF/UHF Mobile Radio User Manual
