Start here

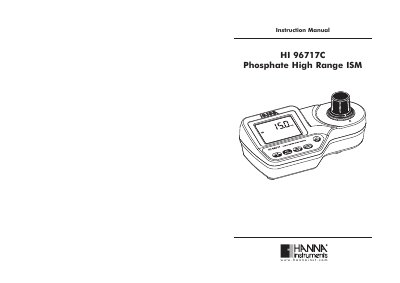

Hanna Instruments HI 96717C Phosphate High Range ISM Instruction Manual
The HI 96717C is an auto diagnostic portable microprocessor meter designed to measure phosphate (PO4) content in water samples ranging from 0.0 to 30.0 mg/L. It features an advanced optical system with a tungsten lamp and a narrow band interference filter, ensuring accurate and repeatable readings. The instrument is splash waterproof and includes a CAL CHECK validation function to verify performance using NIST traceable standards.
Read onlineHanna Instruments HI 96717 specifications
| Range | 0.0 to 30.0 mg/L |
|---|---|
| Resolution | 0.1 mg/L |
| Accuracy | +1.0 mg/L +4% of reading @ 25°C |
| Light Source | Tungsten lamp |
| Light Detector | Silicon Photocell with narrow band interference filter @ 525 nm |
| Method | Amino Acid Method |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 102 x 67 mm (7.6 x 4 x 2.6") |
| Weight | 290 g (10 oz) |
Source: Hanna Instruments HI 96717C Phosphate High Range ISM Instruction Manual
All Hanna Instruments HI 96717 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the measurement range of the HI 96717C?
The meter measures phosphate content in the 0.0 to 30.0 mg/L (ppm) range.
From: Hanna Instruments HI 96717C Phosphate High Range ISM Instruction Manual
What reagents are required for the test?
The required reagents are HI 93717A-0 Phosphate Reagent A (Molybdate) and HI 93717B-0 Phosphate Reagent B (Amino Acid).
From: Hanna Instruments HI 96717C Phosphate High Range ISM Instruction Manual
What is the measurement range of the HI 96717?
The instrument measures phosphate concentrations in a range from 10 to 30.0 mg/l.
From: Hanna Instruments HI 96717 Phosphate High Range ISM Instruction Manual
How long does the battery last?
One fresh battery lasts for around 750 measurements, depending on the light level.
From: Hanna Instruments HI 96717 Phosphate High Range ISM Instruction Manual
