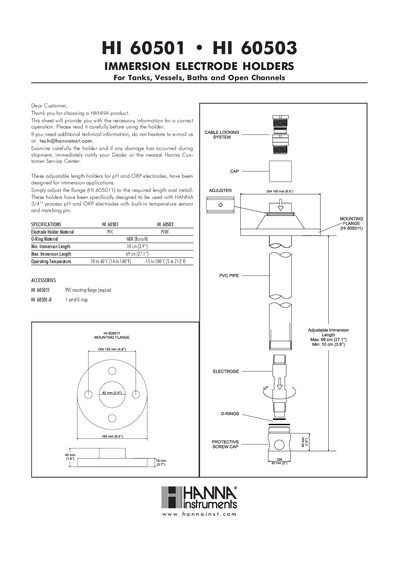

Hanna Instruments HI 60501/60503 Immersion Electrode Holders Instruction Manual
This document provides operating instructions for the Hanna Instruments HI 60501 and HI 60503 immersion electrode holders. These adjustable-length holders are specifically designed for use with Hanna 3/4" process pH and ORP electrodes that feature a built-in temperature sensor and matching pin.
The manual details how to adjust the flange (HI 605011) to set the required immersion length before installation. It also lists key specifications, including materials such as PYC PVDF for the holder body and NBR O-rings, along with operating temperature ranges and dimensions.
Hanna Instruments HI 6050 specifications
| Electrode Holder Material | PYC PVDF |
|---|---|
| O-Ring Material | NBR (Buna N) |
| Minimum Immersion Length | 10 cm (3.9") |
| Maximum Immersion Length | 69 cm (27.14) |
| Cable Locking System Diameter | 165 mm (6.5") |
| Operating Temperature Range | -10 to 60°C (-14 to 140°F) |
| Compatible Electrode Size | 3/4" process pH and ORP electrodes |
Source: Hanna Instruments HI 60501/60503 Immersion Electrode Holders Instruction Manual
All Hanna Instruments HI 6050 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum immersion length for these holders?
The minimum immersion length is 10 cm (3.9 inches).
From: Hanna Instruments HI 60501/60503 Immersion Electrode Holders Instruction Manual
What is the maximum immersion length for these holders?
The maximum immersion length is 69 cm (27.14 inches).
From: Hanna Instruments HI 60501/60503 Immersion Electrode Holders Instruction Manual
How do I mount the electrode holder?
The mounting flange mounts directly to the stainless steel bracket on your tank.
From: Hanna Instruments HI 6050/6051/6052 Submersible Electrode Holders Instruction Sheet
How do I insert the electrode?
Slide the electrode into the holder and hand tighten it.
From: Hanna Instruments HI 6050/6051/6052 Submersible Electrode Holders Instruction Sheet
