Key facts
- Brand
- Hanna Instruments
- Model
- HI 96715C
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-10
Start here

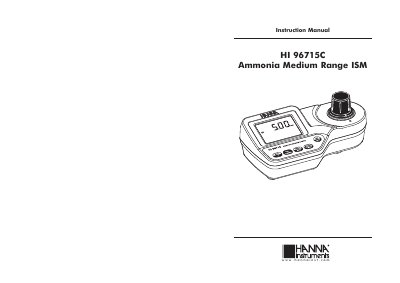

Hanna Instruments HI 96715C Ammonia Meter Instruction Manual
The HI 96715C is an auto-diagnostic portable microprocessor meter designed to measure ammonia nitrogen (NH3-N) content in water samples ranging from 0.00 to 9.99 mg/L. It utilizes an advanced optical system based on a special tungsten lamp and a narrow band interference filter to ensure accurate and repeatable readings. The instrument features a powerful CAL CHECK validation function using NIST traceable standards and includes an auto-shut off feature to conserve battery life.
Read onlineHanna Instruments HI 96715C specifications
| Range | 0.00 to 9.99 mg/L (as NH3-N) |
|---|---|
| Resolution | 0.01 mg/L for measurement |
| Accuracy | +/-0.05 mg/L +5% of reading @ 25°C |
| Light Source | Light Emitting Diode |
| Light Detector | Silicon Photocell with narrow band interference filter @ 466 nm |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery | 1x9 volt |
| Dimensions | 192 x 104 x 69 mm (7.6 x 4.1 x 2.7") |
Source: Hanna Instruments HI 96715C Ammonia Meter Instruction Manual
All Hanna Instruments HI 96715C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the measurement range for the HI 96715C?
The meter measures ammonia nitrogen content in the 0.00 to 9.99 mg/L (ppm) range.
From: Hanna Instruments HI 96715C Ammonia Meter Instruction Manual
How long does the auto-shut off feature last?
The instrument turns off after 10 minutes of non-use in measurement mode or after 1 hour if left in calibration mode.
From: Hanna Instruments HI 96715C Ammonia Meter Instruction Manual
What is the measurement range for the HI 96715C?
The meter measures ammonia nitrogen content in the 0.00 to 9.99 mg/L (ppm) range.
From: Hanna Instruments HI 96715C Ammonia Meter Instruction Manual
How does the instrument ensure the cuvette is in the same position every time?
The instrument uses an exclusive positive-locking system to ensure the cuvette is in the same position every time it is placed into the measurement cell.
From: Hanna Instruments HI 96715C Ammonia Meter Instruction Manual
