Key facts
- Brand
- Hanna Instruments
- Model
- HI96701
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-10
Start here

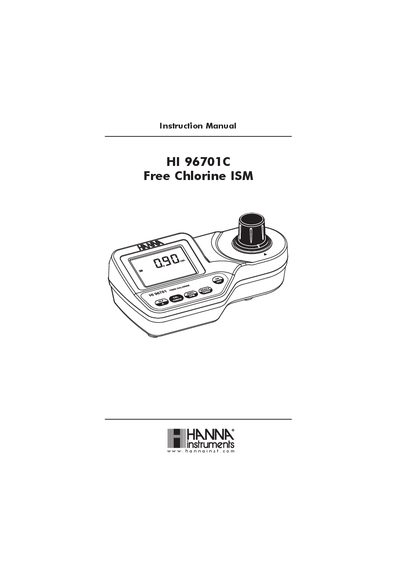

Hanna Instruments HI 96701C Free Chlorine ISM Instruction Manual
The HI 96701C is an auto-diagnostic portable microprocessor meter designed to measure free chlorine content in water samples. It features an advanced optical system with a tungsten lamp and narrow band interference filter, ensuring accurate and repeatable readings. The device includes a CAL CHECK validation function to verify performance using NIST traceable standards.
Read onlineHanna Instruments HI96701 specifications
| Range | 0.00 to 5.00 mg/L |
|---|---|
| Resolution | 0.01 mg/L from 0.00 to 3.50 mg/L; 0.10 mg/L above 3.50 mg/L |
| Accuracy | +/-0.03 mg/L +3% of reading @ 25°C |
| Light Source | Tungsten lamp |
| Light Detector | Silicon Photocell with narrow band interference filter @ 525nm |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 104 x 69 mm (7.6 x 4.1 x 2.7") |
| Weight | 360 g (12.7 oz) |
Source: Hanna Instruments HI 96701C Free Chlorine ISM Instruction Manual
All Hanna Instruments HI96701 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the measurement range of the HI 96701C?
The meter measures free chlorine content in the 0.00 to 5.00 mg/L (ppm) range.
From: Hanna Instruments HI 96701C Free Chlorine ISM Instruction Manual
How can I validate the performance of the instrument?
Use the CAL CHECK function with exclusive HANNA ready-made, NIST traceable standards to verify performance.
From: Hanna Instruments HI 96701C Free Chlorine ISM Instruction Manual
What is the measurement range of the HI96701?
The range is 0.00 to 5.00 mg/l of Free Cl.
From: Hanna Instruments HI96701 Free Chlorine ISM Instruction Manual
How long does the auto-shutoff last in measurement mode?
The instrument shuts down after 10 minutes of non-use in measurement mode.
From: Hanna Instruments HI96701 Free Chlorine ISM Instruction Manual
