Key facts
- Brand
- Hanna Instruments
- Model
- HI 96724
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-10
Start here

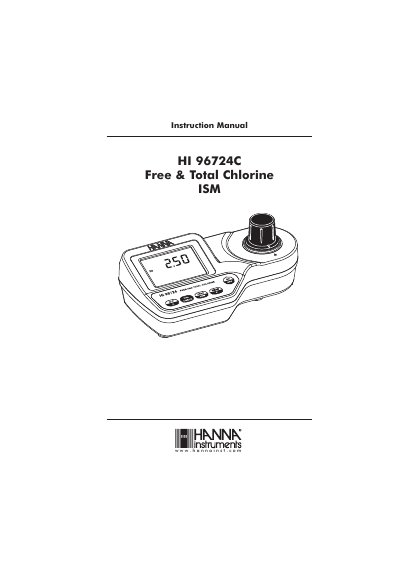

Hanna Instruments HI 96724C Free & Total Chlorine ISM Instruction Manual
The HI 96724 is an auto-diagnostic portable microprocessor meter designed for measuring free and total chlorine content in water. It features an advanced optical system with a tungsten lamp and narrow band interference filter, ensuring accurate and repeatable readings according to USEPA Method 330.5 and Standard Method 4500-Cl G.
The instrument includes user-friendly functions such as CAL CHECK validation, GLP mode for data integrity, and an auto-shut-off feature. It operates using a positive-locking cuvette system and requires specific reagents (HI 93701A-T, B-T, or C-T) to perform measurements in the range of 0.00 to 5.00 mg/L.
Hanna Instruments HI 96724 specifications
| Range | 0.00 to 5.00 mg/L of Cl2 (Free or Total) |
|---|---|
| Resolution | 0.01 mg/L from 0.00 to 3.50 mg/L; 0.10 mg/L above 3.50 mg/L |
| Accuracy | +/-0.03 mg/L +3% of reading @ 25°C |
| Light Source | Tungsten lamp |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Auto-Shut off (Measurement) | After 10' of non-use in measurement mode |
Source: Hanna Instruments HI 96724C Free & Total Chlorine ISM Instruction Manual
All Hanna Instruments HI 96724 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the method used for measuring chlorine?
The meter uses an adaptation of the USEPA Method 330.5 for wastewater and Standard Method 4500-Cl G for drinking water.
From: Hanna Instruments HI 96724C Free & Total Chlorine ISM Instruction Manual
What reagents are required for the test?
The instrument requires HI 93701A-T, HI 93701B-T, or HI 93701C-T reagents depending on the specific chlorine type being measured.
From: Hanna Instruments HI 96724C Free & Total Chlorine ISM Instruction Manual
What is the measurement range of the HI 96724?
The instrument measures free or total chlorine concentrations from 0.00 to 5.00 mg/l.
From: Hanna Instruments HI 96724 Free & Total Chlorine ISM Instruction Manual
How long should the instrument wait before taking a total chlorine reading?
After adding the sample, you must wait for 2 and 30 seconds before pressing the READ key.
From: Hanna Instruments HI 96724 Free & Total Chlorine ISM Instruction Manual
