Key facts
- Brand
- Hanna Instruments
- Model
- HI 8410
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-07-10
Start here

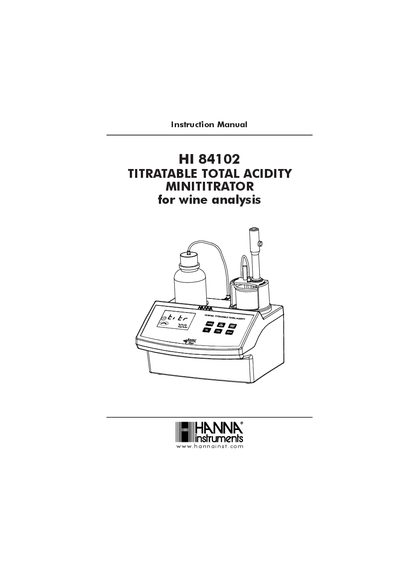

Hanna Instruments HI 84102 Titratable Total Acidity Minititrator Instruction Manual
The HI 84102 is a low-cost, easy-to-use instrument featuring an automatic peristaltic pump and built-in algorithms to determine reaction completion. It includes preprogrammed methods for measuring total titratable acidity in wine, displaying results immediately after the titration cycle.
Read onlineHanna Instruments HI 8410 specifications
| Range | 0.0 to 25.0 g/L of tartaric acid |
|---|---|
| Accuracy | 5% of reading |
| Method | Acid-base titration method |
| Principle | End-point titration |
| Temperature Compensation | Automatic from 0.0 to 100.0 °C |
| Pump debit | 0.5 ml/min |
| Stirring speed | 1500 tpm |
Source: Hanna Instruments HI 84102 Titratable Total Acidity Minititrator Instruction Manual
All Hanna Instruments HI 8410 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the endpoint for European Union requirements?
The instrument uses an end-point of 7.00 pH to fulfill EU requirements.
From: Hanna Instruments HI 84102 Titratable Total Acidity Minititrator Instruction Manual
What is the endpoint for Australian requirements?
For Australian requirements, the titration is performed at an end-point of 8.20.
From: Hanna Instruments HI 84102 Titratable Total Acidity Minititrator Instruction Manual
What is the warranty period for the HI 84100?
The instrument is warranted for two years against defects in workmanship and materials when used for its intended purpose.
From: Hanna Instruments HI 84100 Free & Total Sulphur Dioxide Minititrator Instruction Manual
What reagents are required for the analysis?
The instrument requires Titrant (HI 84100-50), Alkaline Reagent (HI 84100-51), Acid Reagent for Total SO2 (HI 84100-52), and Acid Reagent for Free SO2 (HI 84100-53).
From: Hanna Instruments HI 84100 Free & Total Sulphur Dioxide Minititrator Instruction Manual
What is the warranty period for the instrument?
All HANNA instruments meters are warranted for two years against defects in workmanship and materials.
From: Hanna Instruments HI 8410 Dissolved Oxygen Process Controller Instruction Manual
What is the warranty period for the probes?
The probes are warranted for a period of one year.
From: Hanna Instruments HI 8410 Dissolved Oxygen Process Controller Instruction Manual
