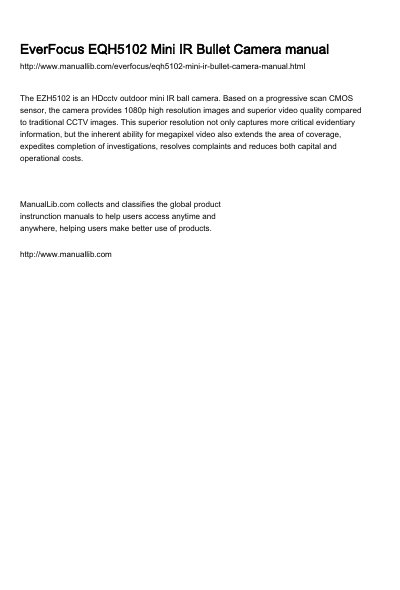

EverFocus EQH5102 Mini IR Bullet Camera

EverFocus EQH5102 Mini IR Bullet Camera

User Manual 23 pages · 1.1 MB · EN

The EverFocus EZH5102 is an outdoor mini IR bullet camera featuring a progressive scan CMOS sensor that provides 1080p high-resolution images. It supports both NTSC and PAL scanning systems and communicates at digital speeds up to 1.5 Gb/s over existing or new coaxial cable using industry standard BNC connectors.

The manual details the packing list, installation procedures for wall or ceiling mounting, and configuration options via the OSD menu. Key features include 3D DNR, DSS low light enhancement, electronic lens shading compensation, contrast boost, and support for digital zoom, back light compensation, highlight suppression mask, and privacy zones.

Read online

EverFocus EQH5102 specifications

Pickup Device1/3" Panasonic 2.1 Megapixel Color Progressive CMOS sensor
Image Pixels1920(H) x 1080(V)
ResolutionDigital:1080p(30/25), 720p(60/50)
Sensitivity (Color)0.4 lux
Video Output (Digital)BT.1120, HDcctv/HD-SDI: BNC connector
Video Output (Analogue)NTSC/PAL CVBS(w/o WDR): BNC connector
S/N RatioMore than 50dB (AGC off)
Power Source12VDC
Power Consumption12VDC: 2W max.
Operating Environment0°C~45°C/32°F~113°F (20%~80% Humidity)
Dimensions89 x 46 x 48mm/3.5" x1.8" x1.9"
Weight0.193kg/0.434lbs
