Key facts
- Brand
- EverFocus
- Model
- 200E
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

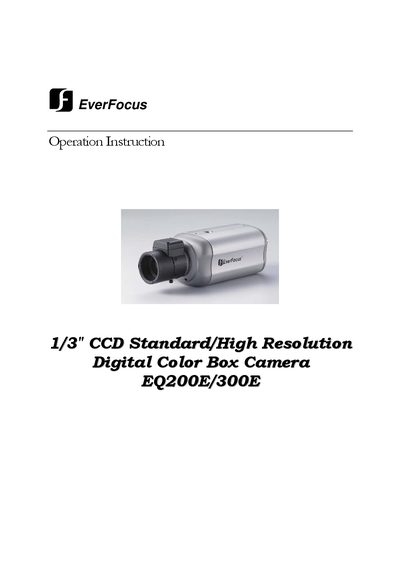

EverFocus EQ200E/300E Operation Instruction
This manual provides operation instructions for the EverFocus EQ200E and EQ300E digital color box cameras. These cameras feature 1/3" SONY Super HAD CCD sensors and are available in standard (380TVL) and high resolution (520TVL) versions. They support both NTSC and PAL video formats and include a Day/Night function for 24-hour monitoring.
Read onlineEverFocus 200E specifications
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Horizontal Resolution | 380 TV Lines (EQ200E) / 520 TV Lines (EQ300E) |
| Sensitivity | 0.3 Lux/F=1.2 (EQ200E) / 0.4 Lux/F=1.2 (EQ300E) |
| Video Output | BNC 1.0Vp-p, 75ohm |
| Power Source | 12VDC only; 12VDC/24VAC; 100VAC~240VAC |
| Dimensions | 58mm(W) x 55mm(H) x 125mm(D) |
| Weight | 0.25kg |
All EverFocus 200E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the horizontal resolution of the EQ300E?
The EQ300E provides a horizontal resolution of 520 TV Lines.
Does the camera support both NTSC and PAL formats?
Yes, the system is available for NTSC or PAL video formats.
What are the power source requirements for the camera?
The camera accepts 12VDC only or 12VDC/24VAC power sources.
From: EverFocus ED300E/200E Color Dome Camera Operation Instructions
How do I adjust the zoom on a vari-focal lens?
Loosen the zoom ring knob, turn towards 'W' to zoom out or 'T' to zoom in, then tighten the knob.
From: EverFocus ED300E/200E Color Dome Camera Operation Instructions
