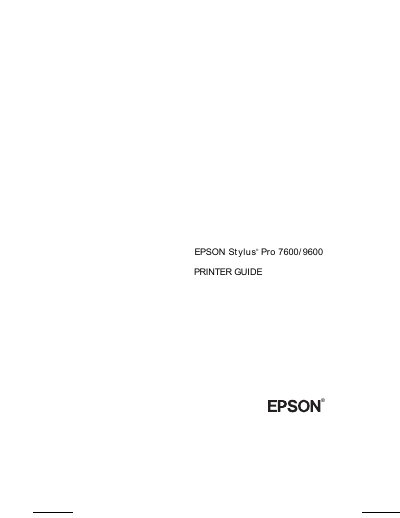

Epson Stylus Pro 7600/9600 Printer Guide
This guide provides step‑by‑step instructions for unpacking, assembling, and installing the Epson Stylus Pro 7600 and 9600 printers, including optional stands and accessories. It details connecting the printer to a computer via USB or parallel ports, installing drivers for both Macintosh and Windows, and configuring print settings.
The manual also explains paper and media handling, roll‑paper operation, print‑head cleaning, alignment, ink‑cartridge replacement, and troubleshooting common issues such as paper jams, print‑quality problems, and error messages. Technical specifications, safety information, and environmental requirements are listed in the final sections.
Epson Stylus Pro 7600/9600 specifications
| Printing method | 7‑color UltraChrome ink or 6‑color Photographic Dye ink |
|---|---|
| Nozzle configuration | 96 nozzles × 7 (black 1, black 2, cyan, magenta, yellow, light cyan, light magenta) |
| Maximum print speed | 190 ft² per hour |
| Maximum resolution | 2880 × 1440 dpi |
| Engine reliability (total print volume) | 20,000 B0 images (360 × 360 dpi) |
| Print head life | 28 billion dots per nozzle |
| Cutter blade life | ≈ 2,000 B0+ sheets (up to 4.33 mil thick) |
| Input voltage range | 120 V (90‑132 V) or 220 V (208‑264 V) |
All Epson Stylus Pro 7600/9600 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I clean the print head?
Run a cleaning cycle from the printer’s control panel as described in the maintenance section.
What types of paper can be used with the Stylus Pro 7600/9600?
Use EPSON media, heavy paper up to 4.33 mil thick, roll paper with 2‑ or 3‑inch cores, and other EPSON‑approved papers.
