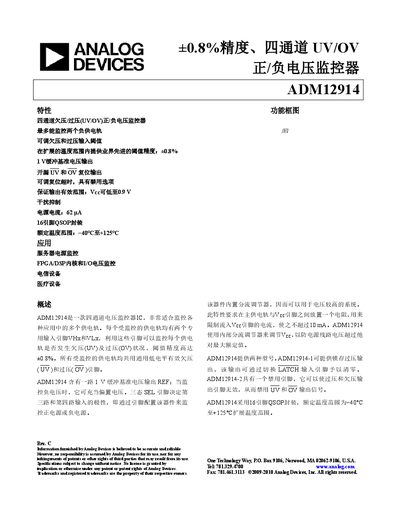

The ADM12914 is a four‑channel UV/OV positive/negative voltage monitor IC with ±0.8 % threshold accuracy and a 1 V buffered reference.
The ADM12914 is a four‑channel voltage‑monitoring IC designed to detect under‑voltage (UV) and over‑voltage (OV) conditions on both positive and negative supply rails. It offers high‑precision thresholds (±0.8 %), a 1 V buffered reference output, open‑drain UV/OV reset outputs, and an adjustable reset timeout.
Typical applications include server power monitoring, FPGA/DSP core and I/O voltage supervision, telecom equipment, and medical devices. The device is supplied in a 16‑pin QSOP package and operates from –40 °C to +125 °C. This manual is written in Chinese.
| Supply voltage range (VCC) | 2.3 V to 6.0 V |
|---|---|
| Reference output voltage (VREF) | 1 V (typical) |
| Supply current (ICC) | 62 µA typical |
| Threshold accuracy | ±0.8 % |
| Package | 16‑pin QSOP |
It can monitor up to four voltage rails, with two dedicated input pins for each channel.
The device provides a 1 V buffered reference output (VREF).
The allowed VCC range is from 2.3 V up to 6.0 V.
The threshold accuracy is ±0.8 %.
