This manual covers the operation, parameters, and troubleshooting for the Yaskawa H1000 heavy-duty high-performance inverter with crane-specific software.

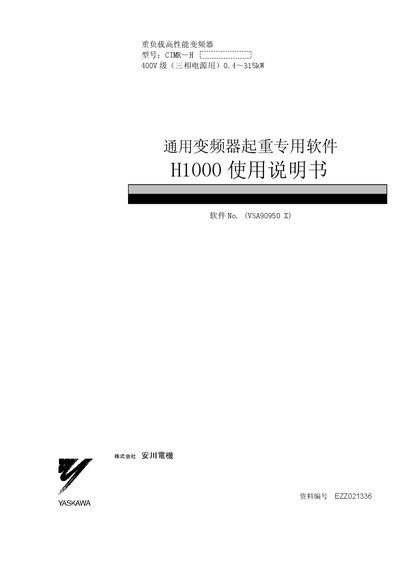

The document is a user manual for the Yaskawa H1000 series of heavy-load high-performance inverters (CIMR-H), specifically designed for crane applications. It details the basic specifications, electrical ratings, and connection diagrams for the 400V class three-phase power models ranging from 0.4 to 315kW.
The guide explains how this specialized model differs from standard H1000 inverters, including added functions like brake timing monitoring, collision stop, and overload detection. It provides comprehensive tables comparing parameter changes, initial values, and setting ranges between the standard and crane-specific versions. This manual is written in Japanese.
| Power Class | 400V class (Three-phase power) |
|---|---|
| Power Range | 0.4～315kW |
| Software Number | VSA90950 X |
| Document Number | EZZ021336 |
The software number for the heavy-duty high-performance inverter H1000 (special specification type) with crane-specific software is VSA90950.
For details on how to use the operator and self-learning functions, you should refer to the H1000 Technical Manual.
