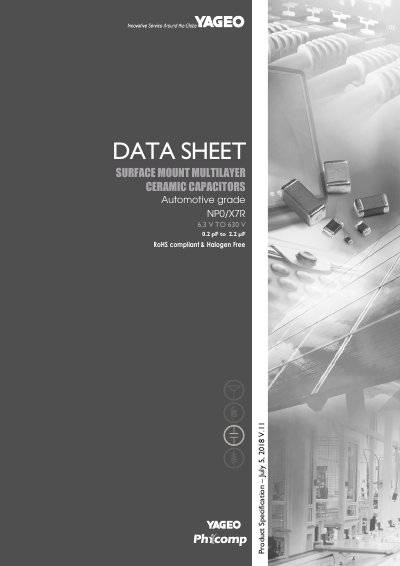

YAGEO Automotive Grade NP0/X7R Surface-Mount Ceramic Multilayer Capacitors Datasheet

This datasheet details specifications, dimensions, capacitance ranges, and ordering information for YAGEO automotive-grade NP0/X7R surface-mount ceramic…

Brand: Yageo
Category: Chips
Document type: Datasheet
Language: English
Pages: 24
File format: PDF
File size: 1.7 MB
Published: 18 October, 2026
Updated: 18 October, 2026
Model: NP0/X7R
MD5 checksum: C77D93826BA08046179C0C8EC6EC7854
PDF: YAGEO Automotive Grade NP0/X7R Surface-Mount Ceramic Multilayer Capacitors Datasheet PDF

About this manual

This document is a product specification sheet for automotive-grade NP0/X7R surface-mount ceramic multilayer capacitors. It covers voltage ratings from 6.3 V to 630 V and capacitance values ranging from 0.2 pF to 2.2 µF. The capacitors are RoHS compliant, halogen-free, and AEC-Q200 qualified with MSL class 1 rating.

What's inside

Ordering Information
Construction
Dimensions
Capacitance Range NP0
Capacitance Range X7R
Applications
Features

Specifications

Rated Voltage Range	6.3 V to 630 V
Capacitance Range	0.2 pF to 2.2 µF
Material Type	NP0 / X7R
Qualification Standard	AEC-Q200 qualified
MSL Class	MSL 1

Frequently asked questions

Are these capacitors RoHS compliant?

Yes, the document states they are RoHS compliant and halogen free.

What is the MSL class rating for these capacitors?

The capacitors have an MSL class rating of 1.
