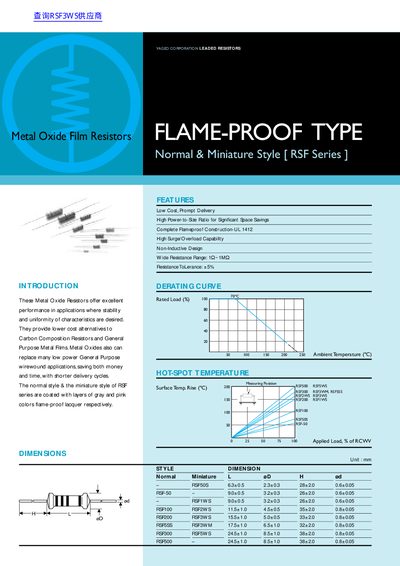

This document is a datasheet for YAGEO Corporation's RSF Series Leaded Resistors, which are Metal Oxide Film Resistors of the Flame-Proof Type. The series includes both Normal and Miniature styles and is designed to offer low cost, prompt delivery, and a high power-to-size ratio. The resistors feature a non-inductive design and are coated with gray or pink flame-proof lacquer.
| Resistance Range | 12~1MQ |
|---|---|
| Resistance Tolerance | + 5% |
| Operating Temp. Range | -55°C to + 155°C |
| Value Range | +5% 1Q~510KQ2 |
| Temperature Coefficient | +300ppm/°C |
The operating temperature range is from -55°C to + 155°C.
The standard value range is +5% 1Q~510KQ2.
