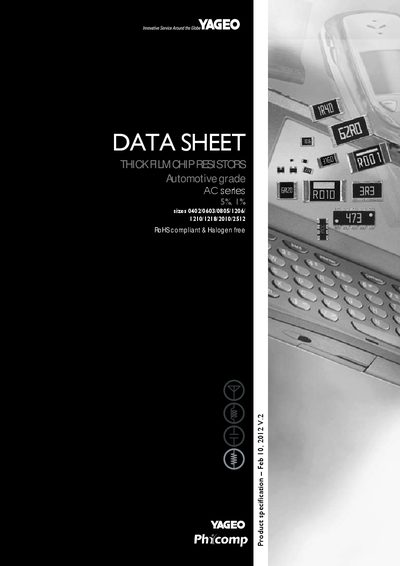

This datasheet details Yageo AC Series automotive-grade thick film chip resistors (0402 to 2512 sizes) with 1% and 5% tolerances, covering construction…
The document is a product specification sheet for the Yageo AC Series of thick film chip resistors, designed for automotive and general industrial applications. These components are available in various surface-mount sizes ranging from 0402 to 2512 and feature lead-free terminations compliant with AEC-Q200 and RoHS standards. The resistors utilize a thick film process with a protective overcoat and are marked according to E-24 and E-96 series coding rules.
| Operating Temperature Range | -55 °C to +155 °C |
|---|---|
| Tolerance | 5% (E24), 1% (E24/E96) |
| Resistance Range | 1 Ω to 10 MΩ |
| Rated Power (AC0402) | 1/16 W (0.0625W) |
| Rated Power (AC2512) | 1 W |
| Compliance Standard | AEC-Q200 |
The resistance range is from 1 Ω to 10 MΩ.
Yes, the products are RoHS compliant and Halogen free.
The maximum operating temperature is +155 °C.
