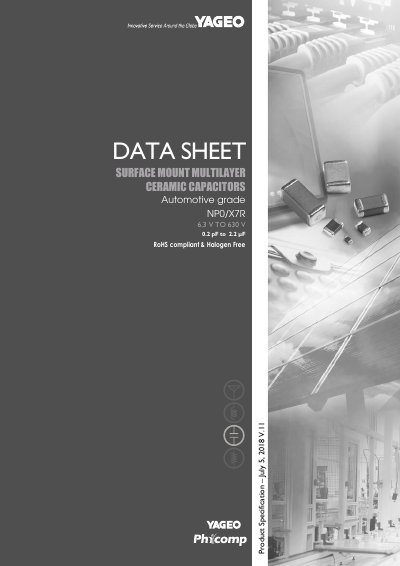

YAGEO Automotive Grade NP0/X7R Ceramic Capacitors Datasheet

This datasheet details specifications for YAGEO automotive grade NP0/X7R surface-mount ceramic multilayer capacitors, covering dimensions, capacitance…

Brand: Yageo
Category: electronic components
Document type: Datasheet
Language: English
Pages: 24
File format: PDF
File size: 1.7 MB
Published: 14 October, 2026
Updated: 14 October, 2026
MD5 checksum: A617369EB0347F5E5F921783FF96E49D
PDF: YAGEO Automotive Grade NP0/X7R Ceramic Capacitors Datasheet PDF

About this manual

This document is a product specification for automotive grade NP0/X7R surface-mount ceramic multilayer capacitors manufactured by YAGEO. The capacitors are designed for use in automotive equipment and are compliant with RoHS and halogen-free standards. They feature lead-free terminations and are qualified under AEC-Q200 with an MSL class of 1.

What's inside

Ordering Information
Construction
Dimensions
Capacitance Range for NP0
Capacitance Range for X7R
Applications
Features

Specifications

Rated Voltage Range	6.3 V to 630 V
Capacitance Range	0.2 pF to 2.2 µF
Material	NP0 / X7R
Qualification Standard	AEC-Q200
MSL Class	MSL 1
Termination Type	Lead-free
RoHS Compliance	Compliant

Frequently asked questions

What is the capacitance range for these capacitors?

The capacitance range is from 0.2 pF to 2.2 µF.

Are these capacitors RoHS compliant?

Yes, the capacitors are RoHS compliant and halogen free.

What is the MSL class of these capacitors?

The capacitors have an MSL class of 1.
